B65841A0160J087

B65841A0160J087

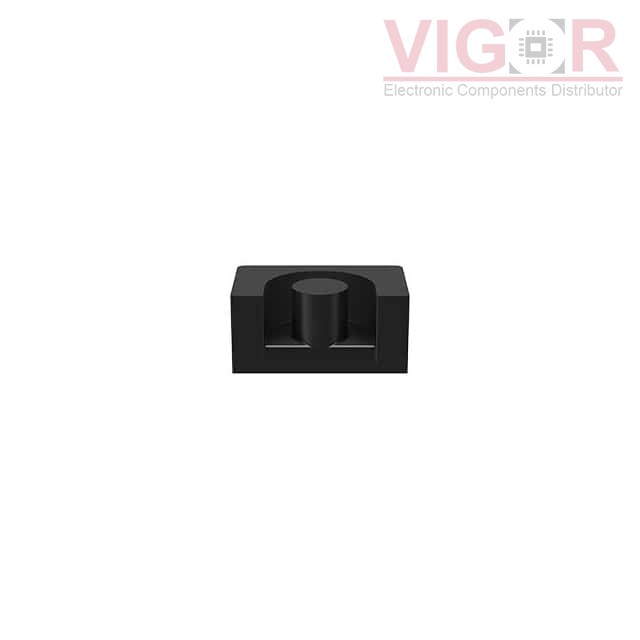

Image is for reference,
please contact us to get the real picture

Part No :

B65841A0160J087

Manufacturer
TDK EPCOS
Description
FERRITE CORE EP 160NH N87 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B65841A0160J087 PDF
Availability
0 pieces
Unit Price
$0.48026

Current price of B65841A0160J087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65841A0160J087 Specifications
Type Description
Series:B65841
Package:Box
Part Status:Active
Core Type:EP
Supplier Device Package:EP 10
Material:N87
Diameter:-
Inductance Factor (Al):160 nH
Tolerance:±5%
Gap:Gapped
Effective Permeability (µe):216
Initial Permeability (µi):2200
Core Factor (ΣI/A) mm-1:1.7
Effective Length (le) mm:19.2
Effective Area (Ae) mm²:11.3
Minimum Core Cross Section (Amin) mm²:8.5
Effective Magnetic Volume (Ve) mm³:217
Finish:Uncoated
Height:5.20mm
Length:11.80mm
Width:7.85mm
