B64290L0044X830

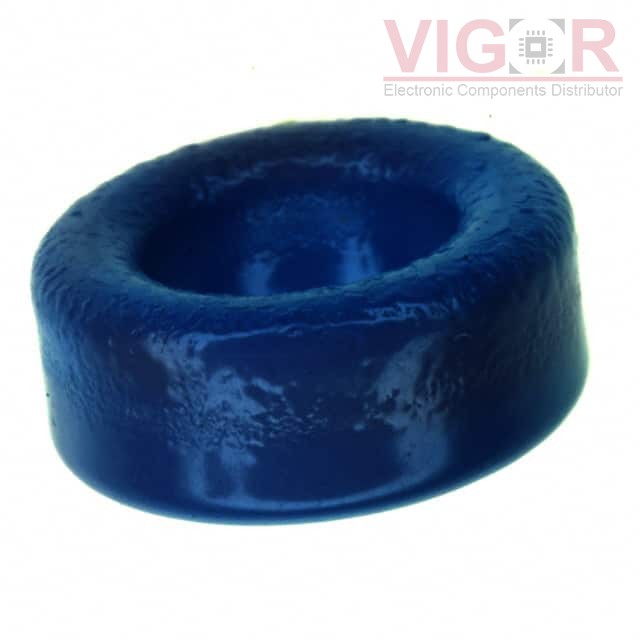

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0044X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 2.2UH N30

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B64290L0044X830 PDF

Availability: 2739 pieces

Unit Price: ~~$0.36000~~

Current price of B64290L0044X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0044X830 Specifications

Type	Description
Series:	B64290
Package:	Bulk
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	13.60mm
Inductance Factor (Al):	2.2 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	2.46
Effective Length (le) mm:	30.09
Effective Area (Ae) mm²:	12.23
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	368
Finish:	Epoxy
Height:	5.95mm
Length:	-
Width:	-
