B66894G0000X197

B66894G0000X197

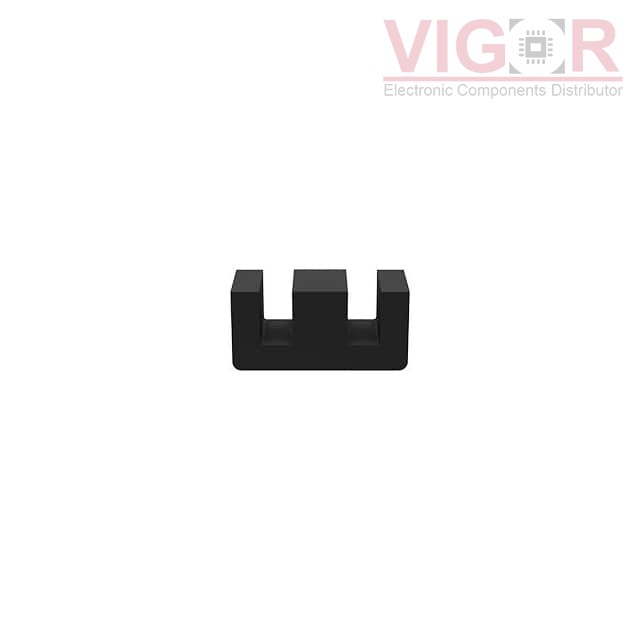

Image is for reference,
please contact us to get the real picture

Part No :

B66894G0000X197

Manufacturer
TDK EPCOS
Description
FERRITE CORES
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
B66894G0000X197 PDF
Availability
0 pieces
Unit Price
$20.68281

Current price of B66894G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66894G0000X197 Specifications
Type Description
Series:*
Package:Bulk
Part Status:Active
Core Type:E
Supplier Device Package:E 100/60/28
Material:N95
Diameter:-
Inductance Factor (Al):-
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):2020
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.373
Effective Length (le) mm:274
Effective Area (Ae) mm²:735
Minimum Core Cross Section (Amin) mm²:690
Effective Magnetic Volume (Ve) mm³:201390
Finish:Uncoated
Height:59.40mm
Length:100.30mm
Width:27.50mm
