B65531D0100A048

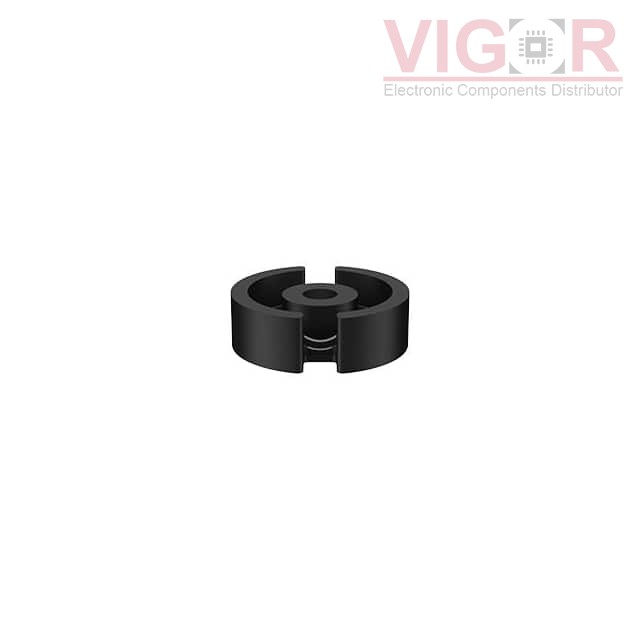

Image is for reference,
please contact us to get the real picture

Part No :: B65531D0100A048

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 100NH N48 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: B65531D0100A048 PDF

Availability: 0 pieces

Unit Price: ~~$1.03421~~

Current price of B65531D0100A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65531D0100A048 Specifications

Type	Description
Series:	B65531
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 11 x 7
Material:	N48
Diameter:	11.30mm
Inductance Factor (Al):	100 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	80
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	1
Effective Length (le) mm:	15.9
Effective Area (Ae) mm²:	15.9
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	253
Finish:	Uncoated
Height:	3.30mm
Length:	-
Width:	-
