B65733A0000R027

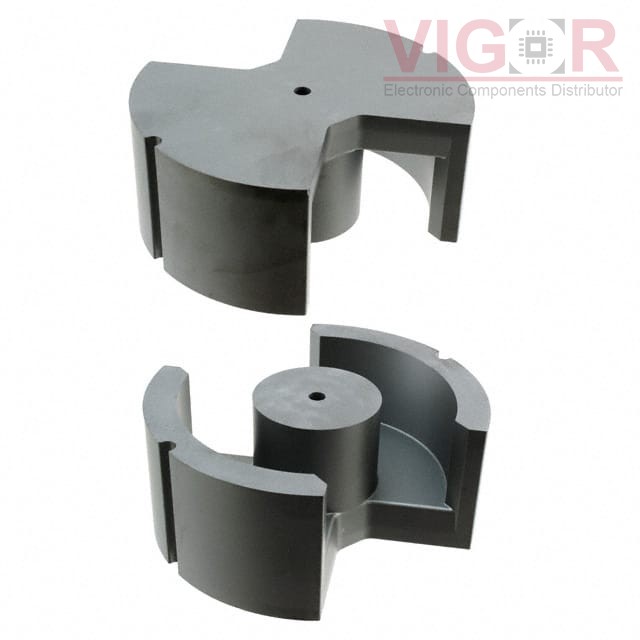

Image is for reference,
please contact us to get the real picture

Part No :: B65733A0000R027

Manufacturer: TDK EPCOS

Description: FERRITE CORE PM 16UH N27 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: B65733A0000R027 PDF

Availability: 6 pieces

Unit Price: ~~$238.97000~~

Current price of B65733A0000R027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65733A0000R027 Specifications

Type	Description
Series:	B65733
Package:	Tray
Part Status:	Active
Core Type:	PM
Supplier Device Package:	PM 114 x 93
Material:	N27
Diameter:	114.00mm
Inductance Factor (Al):	16 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1480
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	0.116
Effective Length (le) mm:	200
Effective Area (Ae) mm²:	1720
Minimum Core Cross Section (Amin) mm²:	1380
Effective Magnetic Volume (Ve) mm³:	344000
Finish:	Uncoated
Height:	46.50mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
