B65525J0160A087

B65525J0160A087

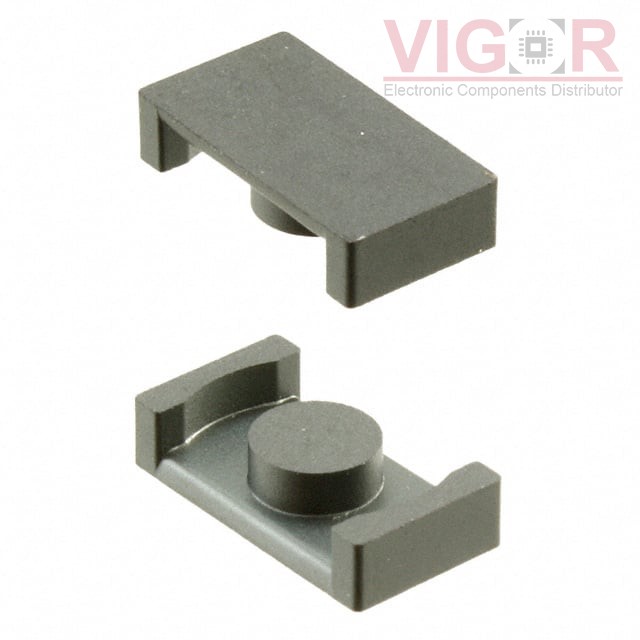

Image is for reference,
please contact us to get the real picture

Part No :

B65525J0160A087

Manufacturer
TDK EPCOS
Description
FERRITE CORE ER 160NH N87 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
B65525J0160A087 PDF
Availability
4374 pieces
Unit Price
$0.91000

Current price of B65525J0160A087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65525J0160A087 Specifications
Type Description
Series:B65525
Package:Box
Part Status:Active
Core Type:ER
Supplier Device Package:ER 11 x 5
Material:N87
Diameter:-
Inductance Factor (Al):160 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):140
Initial Permeability (µi):2200
Core Factor (ΣI/A) mm-1:1.1
Effective Length (le) mm:14.1
Effective Area (Ae) mm²:12.4
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:174
Finish:Uncoated
Height:2.50mm
Length:11.00mm
Width:6.00mm
