B66325G1000X187

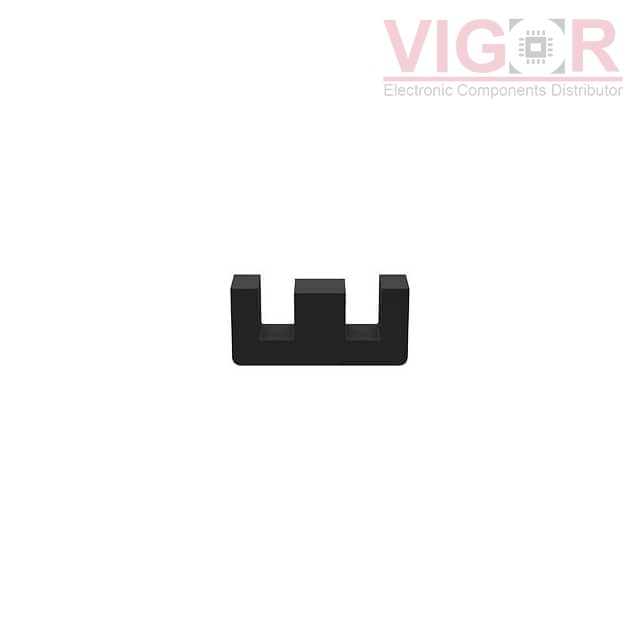

Image is for reference,
please contact us to get the real picture

Part No :: B66325G1000X187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: B66325G1000X187 PDF

Availability: 0 pieces

Unit Price: ~~$1.06862~~

Current price of B66325G1000X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66325G1000X187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 42 x 21 x 15
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.54
Effective Length (le) mm:	97
Effective Area (Ae) mm²:	178
Minimum Core Cross Section (Amin) mm²:	175
Effective Magnetic Volume (Ve) mm³:	17300
Finish:	Uncoated
Height:	21.20mm
Length:	42.00mm
Width:	15.20mm
