B65541T0160G048

B65541T0160G048

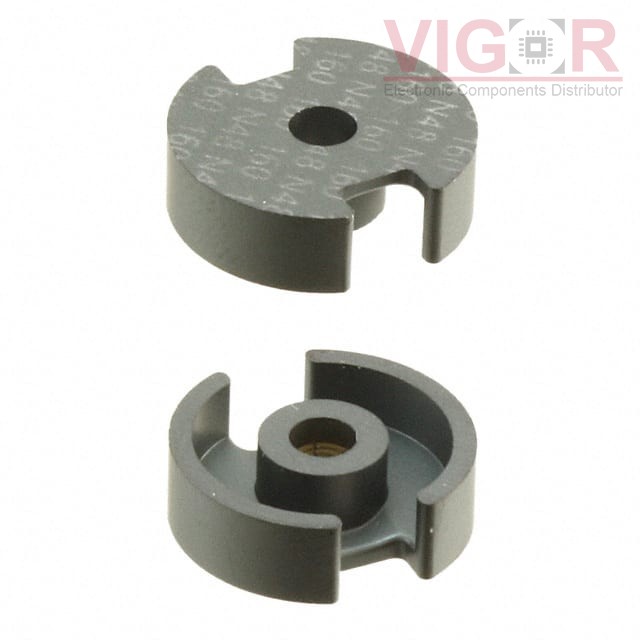

Image is for reference,
please contact us to get the real picture

Part No :

B65541T0160G048

Manufacturer
TDK EPCOS
Description
FERRITE CORE P 160NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
B65541T0160G048 PDF
Availability
1265 pieces
Unit Price
$2.63000

Current price of B65541T0160G048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65541T0160G048 Specifications
Type Description
Series:B65541
Package:Box
Part Status:Active
Core Type:P (Pot Core)
Supplier Device Package:P 14 x 8
Material:N48
Diameter:14.30mm
Inductance Factor (Al):160 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):102
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.8
Effective Length (le) mm:20
Effective Area (Ae) mm²:25
Minimum Core Cross Section (Amin) mm²:20
Effective Magnetic Volume (Ve) mm³:500
Finish:Uncoated
Height:4.25mm
Length:-
Width:-
