B64290L0696X830

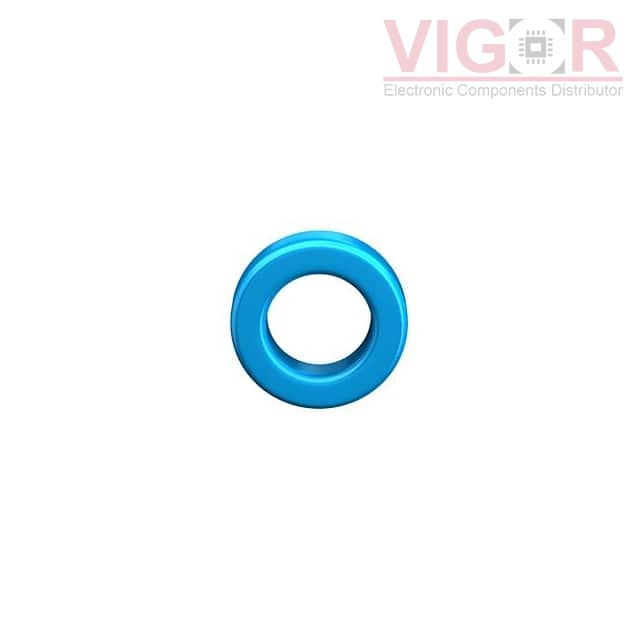

Image is for reference,
please contact us to get the real picture

Part No :

B64290L0696X830

Manufacturer
TDK EPCOS
Description
FERRITE CORES
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B64290L0696X830 PDF
Availability
0 pieces
Unit Price
$20.75942

Current price of B64290L0696X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:B64290
Package:Bulk
Part Status:Active
Core Type:Toroid
Supplier Device Package:R 68.0 × 48.0 × 13.0
Material:N30
Diameter:-
Inductance Factor (Al):-
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):4300
Core Factor (ΣI/A) mm-1:1.39
Effective Length (le) mm:178.6
Effective Area (Ae) mm²:128.7
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:22980
Finish:Epoxy
Height:-
Length:-
Width:-
