PC40P9/5Z-52H

PC40P9/5Z-52H

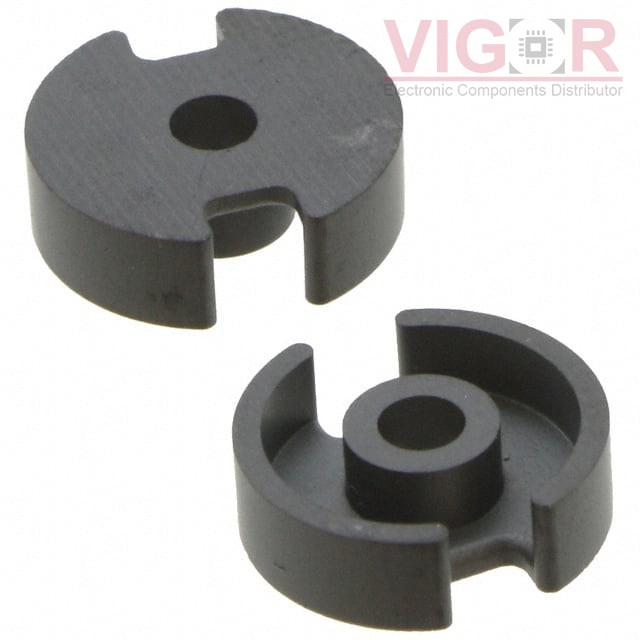

Image is for reference,
please contact us to get the real picture

Part No :

PC40P9/5Z-52H

Manufacturer
TDK Corporation
Description
FERRITE CORE 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
PC40P9/5Z-52H PDF
Availability
1224 pieces
Unit Price
$1.11000

Current price of PC40P9/5Z-52H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC40P9/5Z-52H Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Core Type:P (Pot Core)
Supplier Device Package:P 9 x 5
Material:PC40
Diameter:7.33mm
Inductance Factor (Al):-
Tolerance:-
Gap:Ungapped
Effective Permeability (µe):821
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.24
Effective Length (le) mm:12.4
Effective Area (Ae) mm²:10
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:124
Finish:Uncoated
Height:3.45mm
Length:-
Width:-
