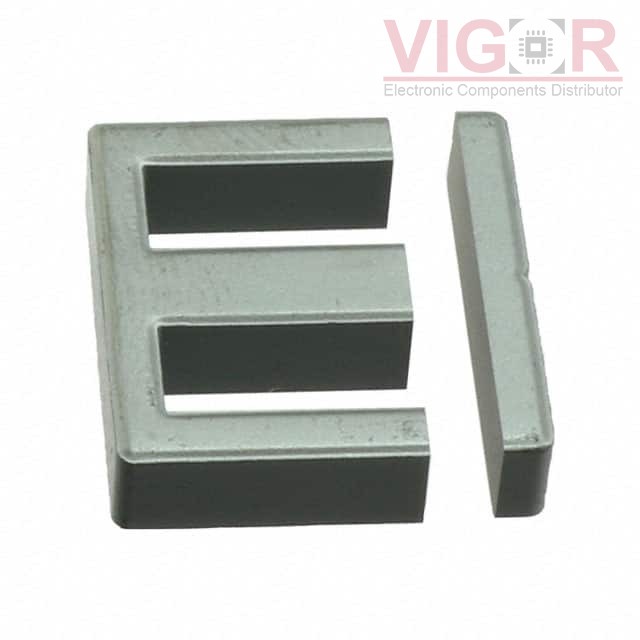

PC47EI19-Z

Image is for reference,
please contact us to get the real picture

Part No :: PC47EI19-Z

Manufacturer: TDK Corporation

Description: EI CORE SMPS TRANSFORMER 1 SET

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: PC47EI19-Z PDF

Availability: 1275 pieces

Unit Price: ~~$0.99000~~

Current price of PC47EI19-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EI19-Z Specifications

Type	Description
Series:	E
Package:	Tray
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	PC47
Diameter:	-
Inductance Factor (Al):	1.4 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2500
Core Factor (ΣI/A) mm^-1:	1.65
Effective Length (le) mm:	39.6
Effective Area (Ae) mm²:	24
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	950
Finish:	Uncoated
Height:	-
Length:	0.787" (20.00mm)
Width:	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
