TX36/23/15-3E10-M

TX36/23/15-3E10-M

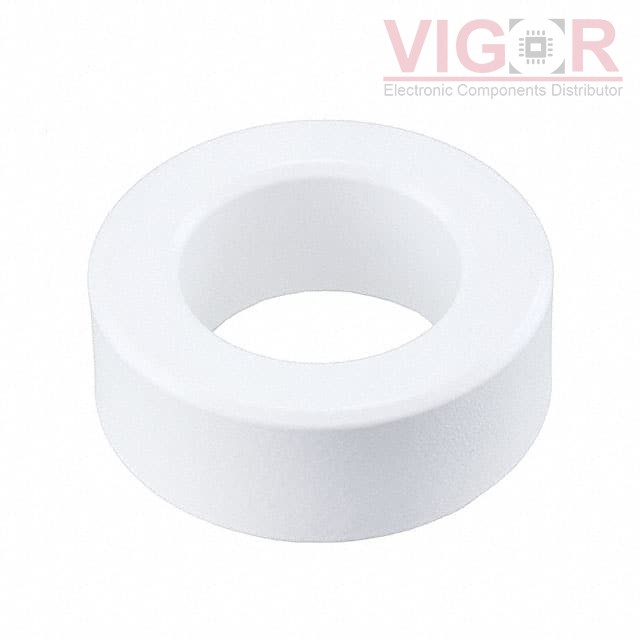

Image is for reference,
please contact us to get the real picture

Part No :

TX36/23/15-3E10-M

Manufacturer
FERROXCUBE
Description
FERRITE CORES ROUND
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
TX36/23/15-3E10-M PDF
Availability
130 pieces
Unit Price
$2.96000

Current price of TX36/23/15-3E10-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX36/23/15-3E10-M Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:Toroid
Supplier Device Package:TX 36 x 23 x 15
Material:-
Diameter:37.15mm
Inductance Factor (Al):-
Tolerance:±30%
Gap:Ungapped
Effective Permeability (µe):10000
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.919
Effective Length (le) mm:89.7
Effective Area (Ae) mm²:97.5
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:8740
Finish:Epoxy
Height:16.00mm
Length:-
Width:-
