B65501D0000Y048

B65501D0000Y048

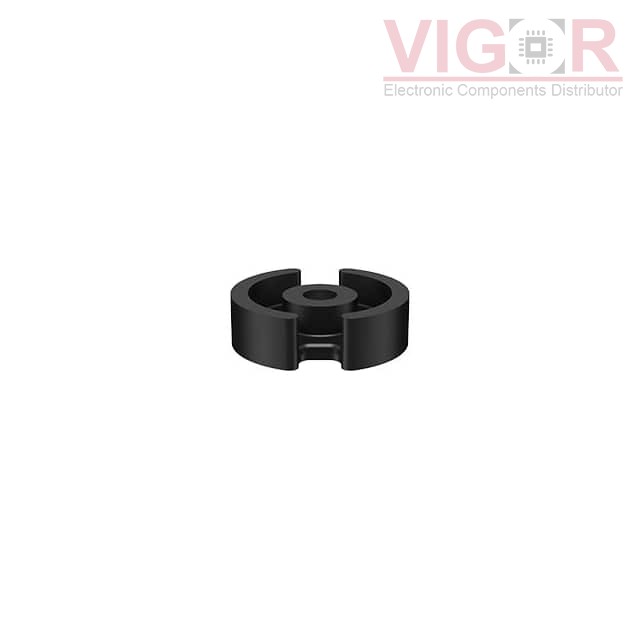

Image is for reference,
please contact us to get the real picture

Part No :

B65501D0000Y048

Manufacturer
TDK EPCOS
Description
FERRITE CORE P 800NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
B65501D0000Y048 PDF
Availability
0 pieces
Unit Price
$0.71820

Current price of B65501D0000Y048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65501D0000Y048 Specifications
Type Description
Series:B65501
Package:Box
Part Status:Active
Core Type:P (Pot Core)
Supplier Device Package:P 5.8 x 3.3
Material:N48
Diameter:5.80mm
Inductance Factor (Al):800 nH
Tolerance:-30%, +40%
Gap:Ungapped
Effective Permeability (µe):1070
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.68
Effective Length (le) mm:7.9
Effective Area (Ae) mm²:4.7
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:37
Finish:Uncoated
Height:1.70mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

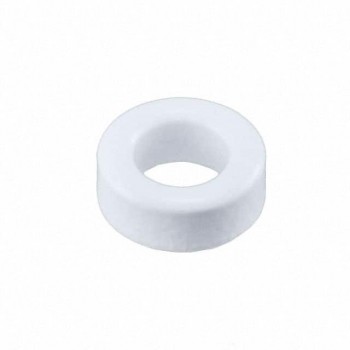

HOT TX16/9.6/6.3-3E65

TX16/9.6/6.3-3E65

FERRITE CORES ROUND

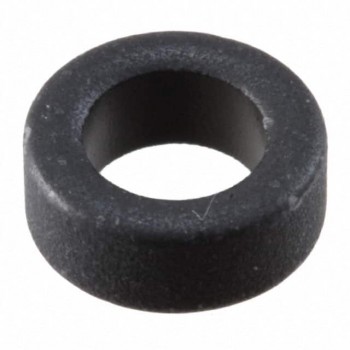

HOT B64290P0036X830

B64290P0036X830

FERRITE CORE TOROID 700NH N30

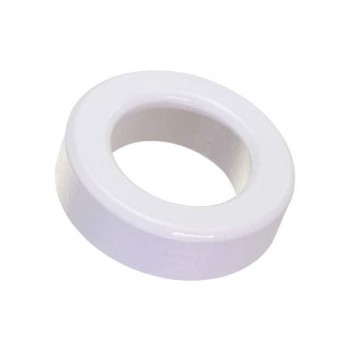

HOT TX42/26/13-3E10-M
