PC95PQ26/25Z-12

PC95PQ26/25Z-12

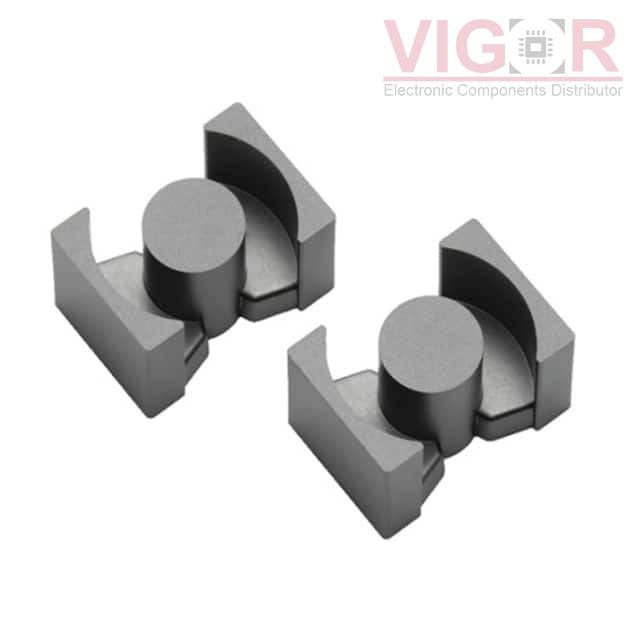

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQ26/25Z-12

Manufacturer
TDK Corporation
Description
FERRITE CORE PQ 6.52UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
PC95PQ26/25Z-12 PDF
Availability
149 pieces
Unit Price
$7.99000

Current price of PC95PQ26/25Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQ26/25Z-12 Specifications
Type Description
Series:PQ
Package:Tray
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 26 x 25
Material:PC95
Diameter:-
Inductance Factor (Al):6.52 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.47
Effective Length (le) mm:55.5
Effective Area (Ae) mm²:118
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:6530
Finish:Uncoated
Height:24.75mm
Length:26.50mm
Width:19.00mm
