B64290P0037X087

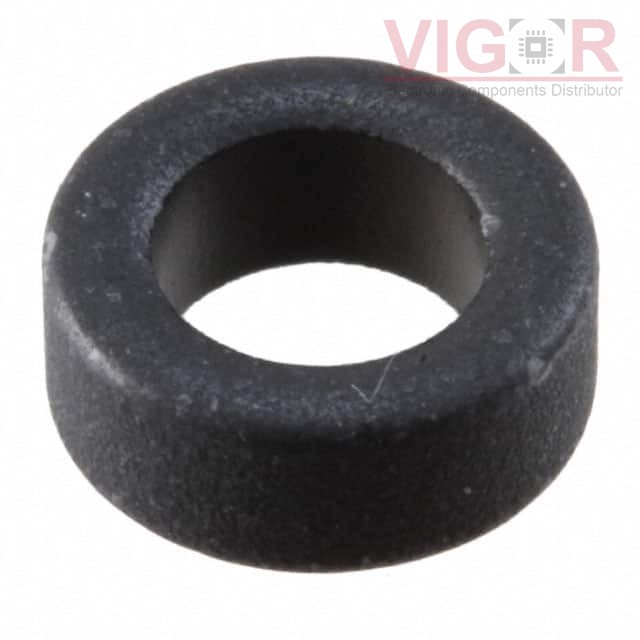

Image is for reference,
please contact us to get the real picture

Part No :: B64290P0037X087

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 560NH N87

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: B64290P0037X087 PDF

Availability: 21778 pieces

Unit Price: ~~$0.43000~~

Current price of B64290P0037X087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290P0037X087 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N87
Diameter:	6.32mm
Inductance Factor (Al):	560 nH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	4.97
Effective Length (le) mm:	15.21
Effective Area (Ae) mm²:	3.06
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	46.5
Finish:	Parylene
Height:	2.52mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
