B65807N0315A048

B65807N0315A048

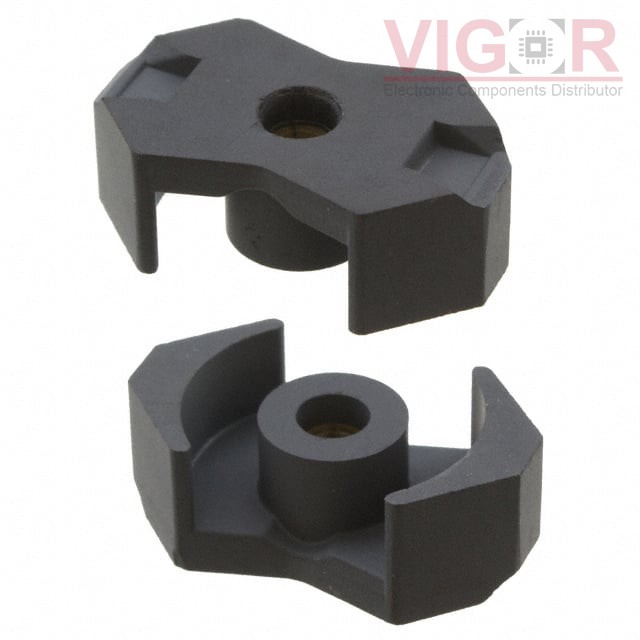

Image is for reference,
please contact us to get the real picture

Part No :

B65807N0315A048

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 315NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
B65807N0315A048 PDF
Availability
2733 pieces
Unit Price
$2.64000

Current price of B65807N0315A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65807N0315A048 Specifications
Type Description
Series:B65807
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 6
Material:N48
Diameter:-
Inductance Factor (Al):315 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):215
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.86
Effective Length (le) mm:26.9
Effective Area (Ae) mm²:31.3
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:840
Finish:Uncoated
Height:6.25mm
Length:17.90mm
Width:8.20mm
