PC95ELT18X7.3-Z

PC95ELT18X7.3-Z

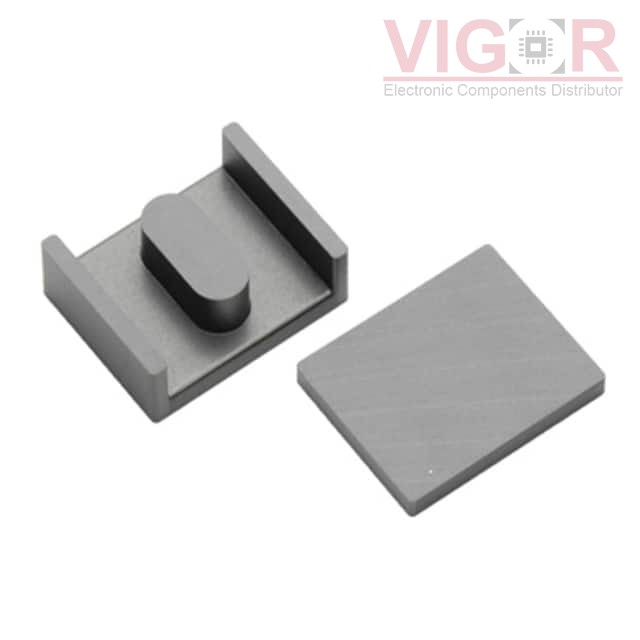

Image is for reference,
please contact us to get the real picture

Part No :

PC95ELT18X7.3-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE ELT 4.76UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
PC95ELT18X7.3-Z PDF
Availability
1542 pieces
Unit Price
$1.88000

Current price of PC95ELT18X7.3-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ELT18X7.3-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:ELH, PLT
Supplier Device Package:ELT 18 x 7.3
Material:PC95
Diameter:-
Inductance Factor (Al):4.76 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.54
Effective Length (le) mm:44.3
Effective Area (Ae) mm²:23.8
Minimum Core Cross Section (Amin) mm²:43
Effective Magnetic Volume (Ve) mm³:1050
Finish:Uncoated
Height:5.65mm
Length:18.00mm
Width:14.40mm
