PC47EER35-Z

PC47EER35-Z

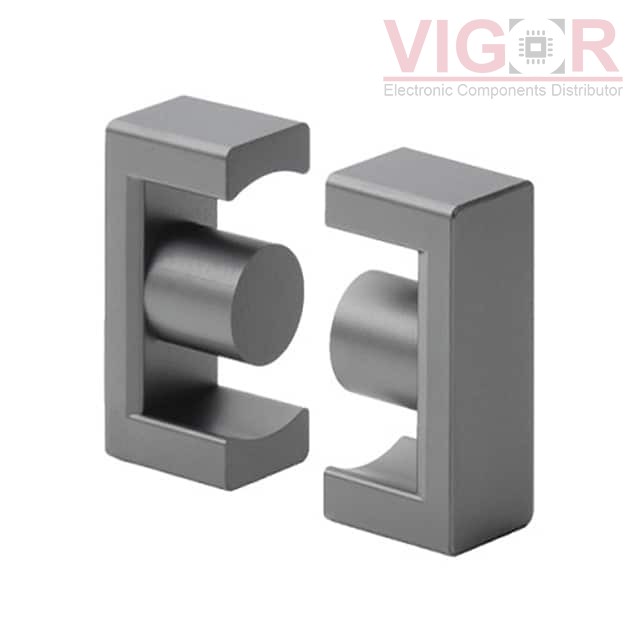

Image is for reference,
please contact us to get the real picture

Part No :

PC47EER35-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EER 2.77UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
PC47EER35-Z PDF
Availability
76 pieces
Unit Price
$5.02000

Current price of PC47EER35-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EER35-Z Specifications
Type Description
Series:E
Package:Tray
Part Status:Active
Core Type:E
Supplier Device Package:EER 35
Material:PC47
Diameter:-
Inductance Factor (Al):2.77 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.85
Effective Length (le) mm:90.8
Effective Area (Ae) mm²:107
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:9720
Finish:Uncoated
Height:20.70mm
Length:35.00mm
Width:11.30mm
