B65686A0000R087

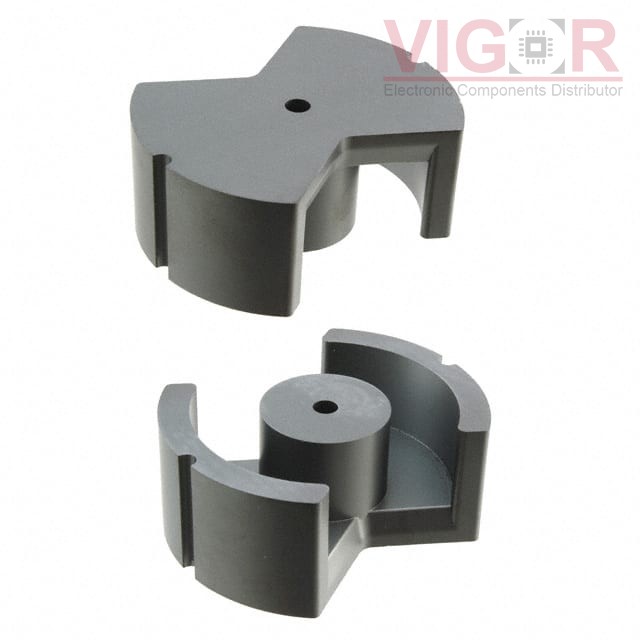

Image is for reference,
please contact us to get the real picture

Part No :: B65686A0000R087

Manufacturer: TDK EPCOS

Description: FERRITE CORE PM 10UH N87 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: B65686A0000R087 PDF

Availability: 204 pieces

Unit Price: ~~$69.65000~~

Current price of B65686A0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65686A0000R087 Specifications

Type	Description
Series:	B65686
Package:	Box
Part Status:	Active
Core Type:	PM
Supplier Device Package:	PM 74 x 59
Material:	N87
Diameter:	74.00mm
Inductance Factor (Al):	10 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1290
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.162
Effective Length (le) mm:	128
Effective Area (Ae) mm²:	790
Minimum Core Cross Section (Amin) mm²:	630
Effective Magnetic Volume (Ve) mm³:	101000
Finish:	Uncoated
Height:	29.50mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
