B65843A0250J045

B65843A0250J045

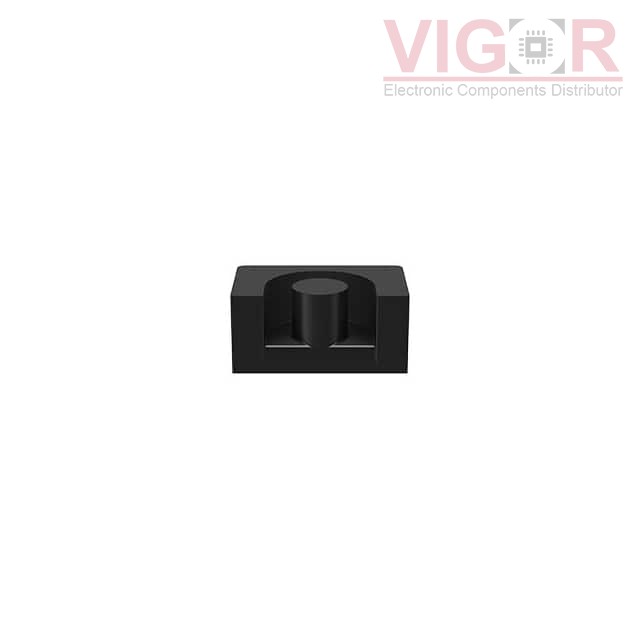

Image is for reference,
please contact us to get the real picture

Part No :

B65843A0250J045

Manufacturer
TDK EPCOS
Description
FERRITE CORE EP 250NH N45 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
B65843A0250J045 PDF
Availability
0 pieces
Unit Price
$0.71820

Current price of B65843A0250J045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65843A0250J045 Specifications
Type Description
Series:B65843A
Package:Box
Part Status:Active
Core Type:EP
Supplier Device Package:EP 13
Material:N45
Diameter:-
Inductance Factor (Al):250 nH
Tolerance:±5%
Gap:Gapped
Effective Permeability (µe):247
Initial Permeability (µi):3800
Core Factor (ΣI/A) mm-1:1.24
Effective Length (le) mm:24.2
Effective Area (Ae) mm²:19.5
Minimum Core Cross Section (Amin) mm²:14.9
Effective Magnetic Volume (Ve) mm³:472
Finish:Uncoated
Height:6.50mm
Length:12.80mm
Width:9.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B64290L0659X065

B64290L0659X065

FERRITE CORE TOROID 8.2UH T65

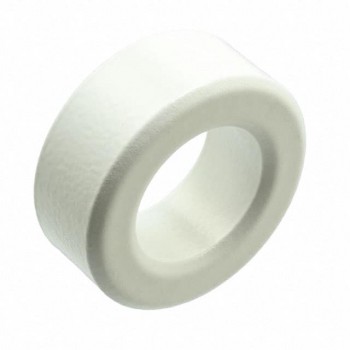

HOT TX40/24/16-3C90

TX40/24/16-3C90

FERRITE CORES ROUND

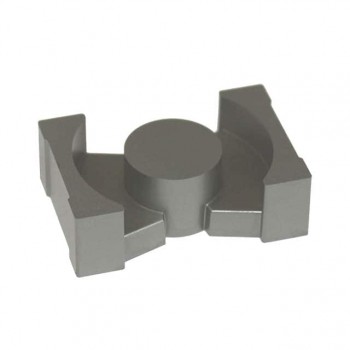

HOT PQ26/25-3F36
