B65843P0000R045

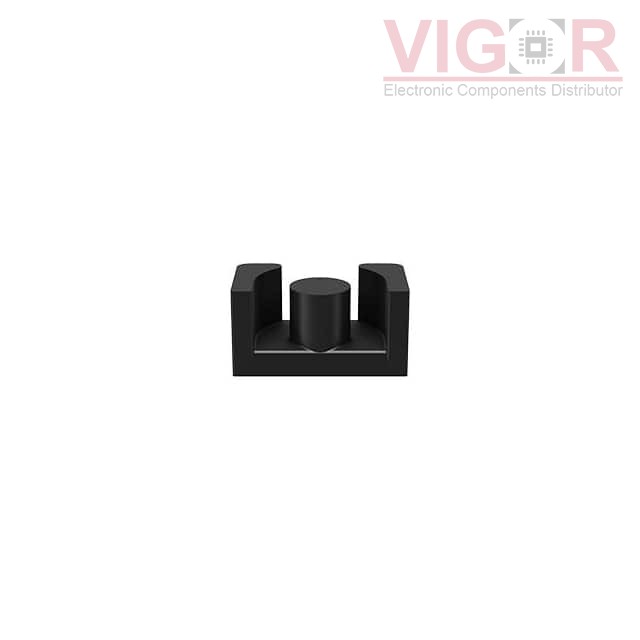

Image is for reference,
please contact us to get the real picture

Part No :: B65843P0000R045

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: B65843P0000R045 PDF

Availability: 0 pieces

Unit Price: ~~$0.73815~~

Current price of B65843P0000R045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65843P0000R045 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EP
Supplier Device Package:	-
Material:	N45
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	3800
Core Factor (ΣI/A) mm^-1:	1.24
Effective Length (le) mm:	24.2
Effective Area (Ae) mm²:	19.5
Minimum Core Cross Section (Amin) mm²:	14.9
Effective Magnetic Volume (Ve) mm³:	472
Finish:	Uncoated
Height:	6.50mm
Length:	12.80mm
Width:	9.00mm

Please confirm the specifications of the products when ordering.
