PC95ELT22X8-Z

PC95ELT22X8-Z

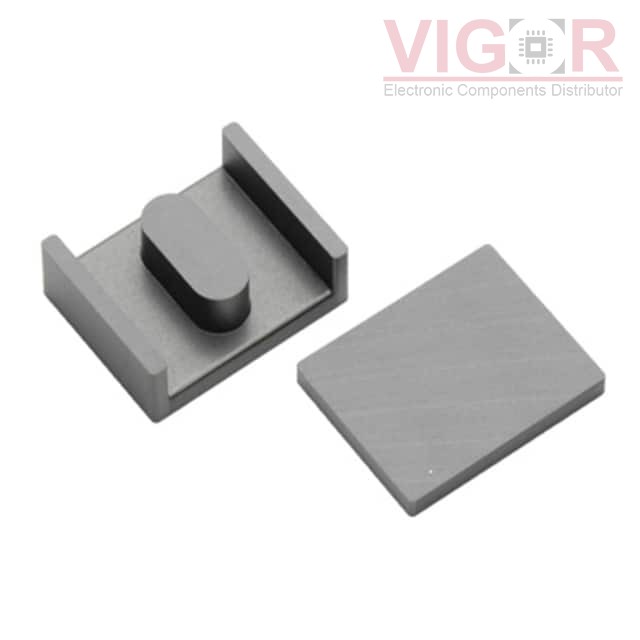

Image is for reference,
please contact us to get the real picture

Part No :

PC95ELT22X8-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE ELT 6.54UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
PC95ELT22X8-Z PDF
Availability
0 pieces
Unit Price
$3.53000

Current price of PC95ELT22X8-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95ELT22X8-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:ELH, PLT
Supplier Device Package:ELT 22 x 8
Material:PC95
Diameter:-
Inductance Factor (Al):6.54 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.41
Effective Length (le) mm:66.2
Effective Area (Ae) mm²:27.3
Minimum Core Cross Section (Amin) mm²:64.2
Effective Magnetic Volume (Ve) mm³:1810
Finish:Uncoated
Height:6.02mm
Length:22.00mm
Width:17.60mm
