B65541D0000R001

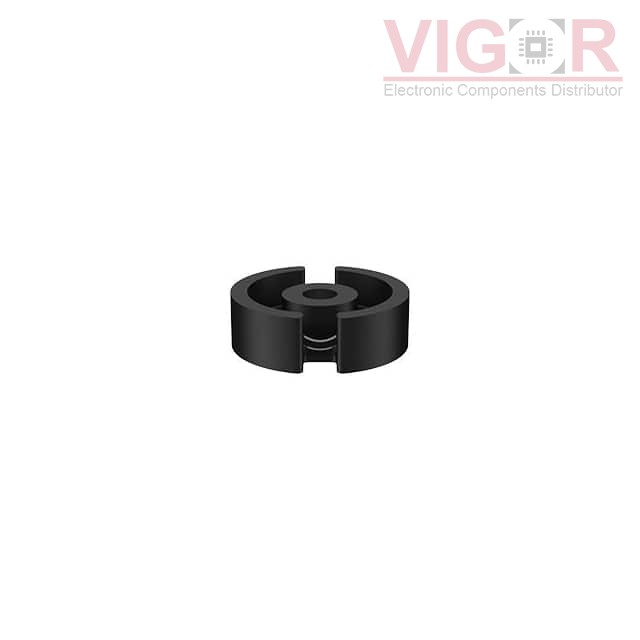

Image is for reference,
please contact us to get the real picture

Part No :: B65541D0000R001

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 140NH K1 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: B65541D0000R001 PDF

Availability: 0 pieces

Unit Price: ~~$1.61728~~

Current price of B65541D0000R001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65541D0000R001 Specifications

Type	Description
Series:	B65541
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 14 x 8
Material:	K1
Diameter:	14.30mm
Inductance Factor (Al):	140 nH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	89
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	0.8
Effective Length (le) mm:	20
Effective Area (Ae) mm²:	25
Minimum Core Cross Section (Amin) mm²:	20
Effective Magnetic Volume (Ve) mm³:	500
Finish:	Uncoated
Height:	4.25mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
