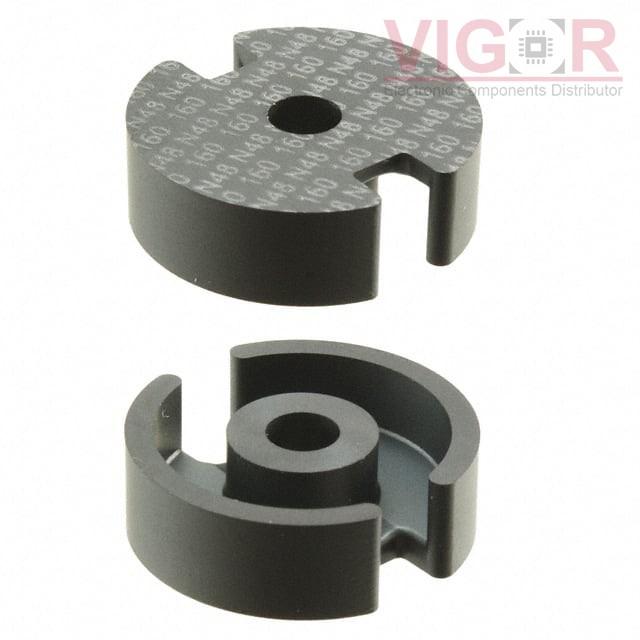

B65661N0160A048

Image is for reference,
please contact us to get the real picture

Part No :: B65661N0160A048

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 160NH N48

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: B65661N0160A048 PDF

Availability: 47 pieces

Unit Price: ~~$6.93000~~

Current price of B65661N0160A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65661N0160A048 Specifications

Type	Description
Series:	B65661
Package:	Tray
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 22 x 13
Material:	N48
Diameter:	22.00mm
Inductance Factor (Al):	160 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	64
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.5
Effective Length (le) mm:	31.6
Effective Area (Ae) mm²:	63
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	1990
Finish:	Uncoated
Height:	6.80mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
