B64290A0719X049

B64290A0719X049

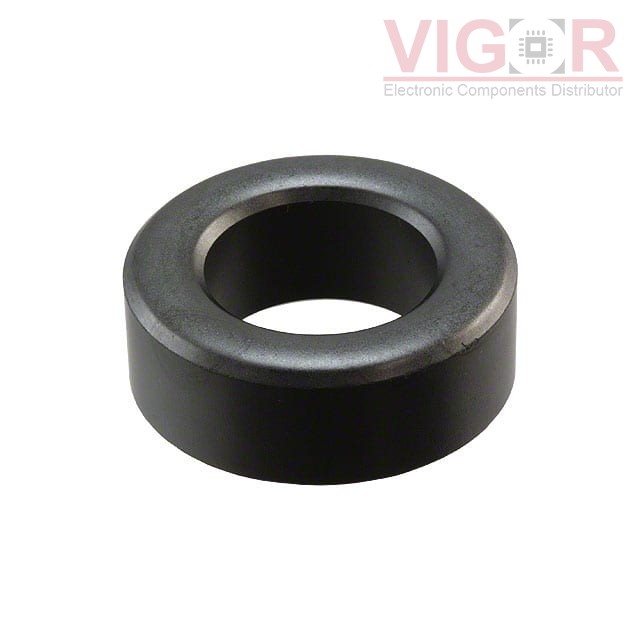

Image is for reference,
please contact us to get the real picture

Part No :

B64290A0719X049

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 1.13UH N49
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
B64290A0719X049 PDF
Availability
2512 pieces
Unit Price
$1.14000

Current price of B64290A0719X049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290A0719X049 Specifications
Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:R 22.1 x 13.7 x 7.9
Material:N49
Diameter:22.10mm
Inductance Factor (Al):1.13 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:1.66
Effective Length (le) mm:54.2
Effective Area (Ae) mm²:32.6
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:1763
Finish:Uncoated
Height:7.90mm
Length:-
Width:-
