PC47EPC30-Z

PC47EPC30-Z

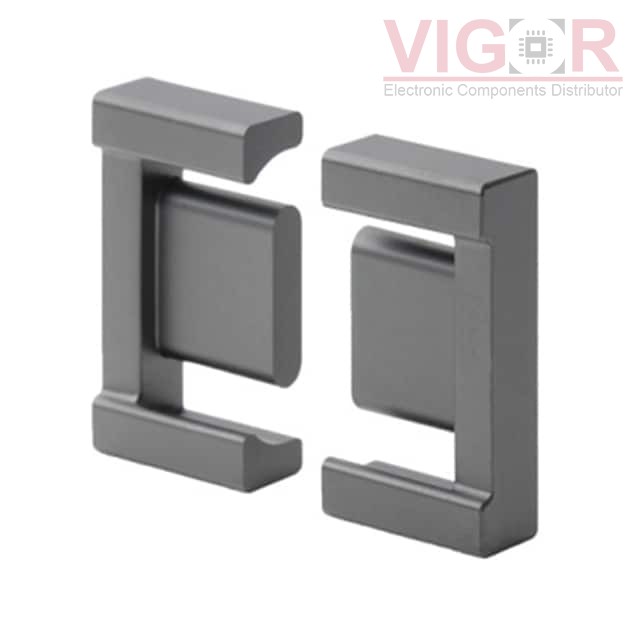

Image is for reference,
please contact us to get the real picture

Part No :

PC47EPC30-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EPC 1.57UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
PC47EPC30-Z PDF
Availability
106 pieces
Unit Price
$3.61000

Current price of PC47EPC30-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EPC30-Z Specifications
Type Description
Series:EPC
Package:Tray
Part Status:Active
Core Type:EPC
Supplier Device Package:EPC 30
Material:PC47
Diameter:-
Inductance Factor (Al):1.57 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.35
Effective Length (le) mm:75.3
Effective Area (Ae) mm²:55.6
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:4190
Finish:Uncoated
Height:17.50mm
Length:30.10mm
Width:8.00mm
