B64290A0711X010

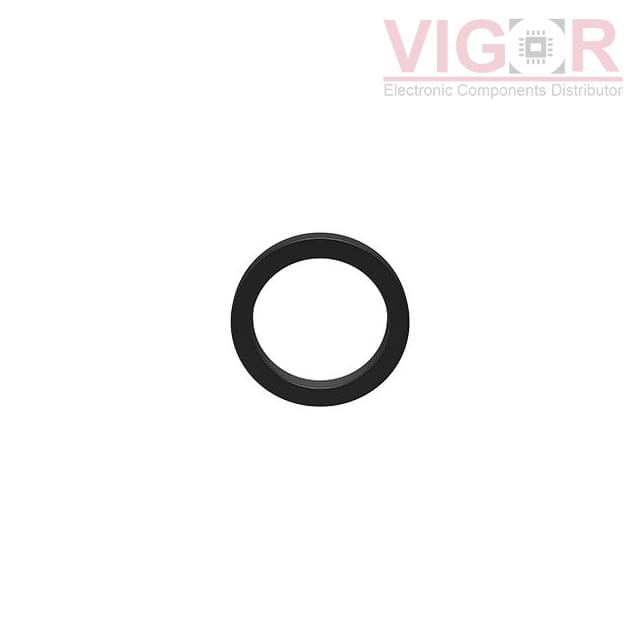

Image is for reference,
please contact us to get the real picture

Part No :: B64290A0711X010

Manufacturer: TDK EPCOS

Description: R202/153/25

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: B64290A0711X010 PDF

Availability: 0 pieces

Unit Price: ~~$313.00167~~

Current price of B64290A0711X010 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290A0711X010 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	R 202 x 153 x 25
Material:	K10
Diameter:	202.00mm
Inductance Factor (Al):	970 nH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	700
Core Factor (ΣI/A) mm^-1:	0.9
Effective Length (le) mm:	550.5
Effective Area (Ae) mm²:	608.6
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	335030
Finish:	Uncoated
Height:	25.00mm
Length:	-
Width:	-
