B64290A0048X830

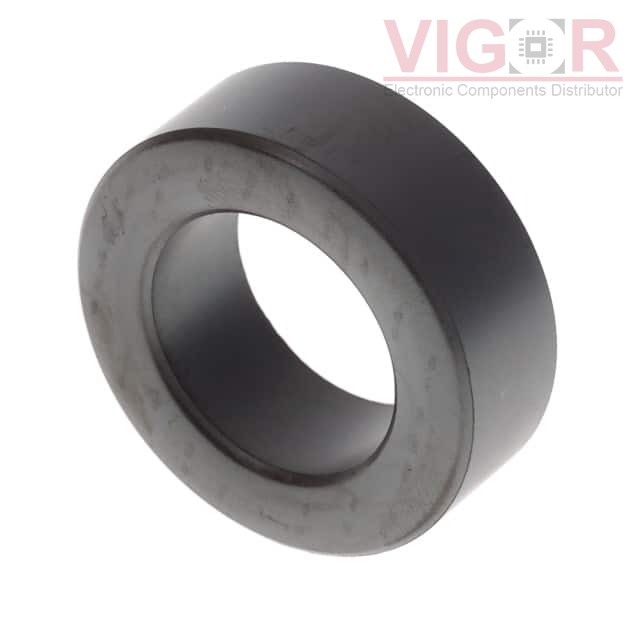

Image is for reference,
please contact us to get the real picture

Part No :

B64290A0048X830

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 5.46UH N30
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
B64290A0048X830 PDF
Availability
5 pieces
Unit Price
$3.57000

Current price of B64290A0048X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:R 34 x 20.5 x 12.5
Material:N30
Diameter:34.00mm
Inductance Factor (Al):5.46 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):4300
Core Factor (ΣI/A) mm-1:0.99
Effective Length (le) mm:82.06
Effective Area (Ae) mm²:82.6
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:6778
Finish:Uncoated
Height:12.50mm
Length:-
Width:-
