B66347G0000X197

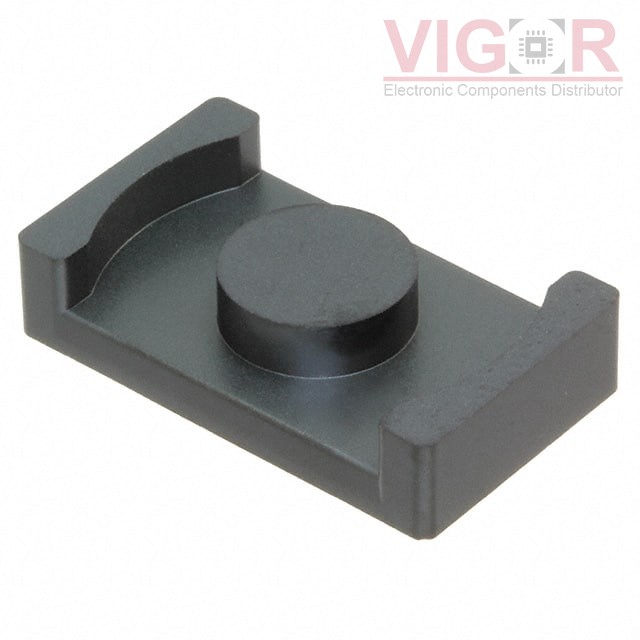

Image is for reference,
please contact us to get the real picture

Part No :: B66347G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: B66347G0000X197 PDF

Availability: 151 pieces

Unit Price: ~~$2.96000~~

Current price of B66347G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66347G0000X197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 42 x 22 x 15
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	0.58
Effective Length (le) mm:	99
Effective Area (Ae) mm²:	170
Minimum Core Cross Section (Amin) mm²:	170
Effective Magnetic Volume (Ve) mm³:	16800
Finish:	Uncoated
Height:	21.80mm
Length:	42.00mm
Width:	15.00mm

Please confirm the specifications of the products when ordering.
