B65513J0100A087

B65513J0100A087

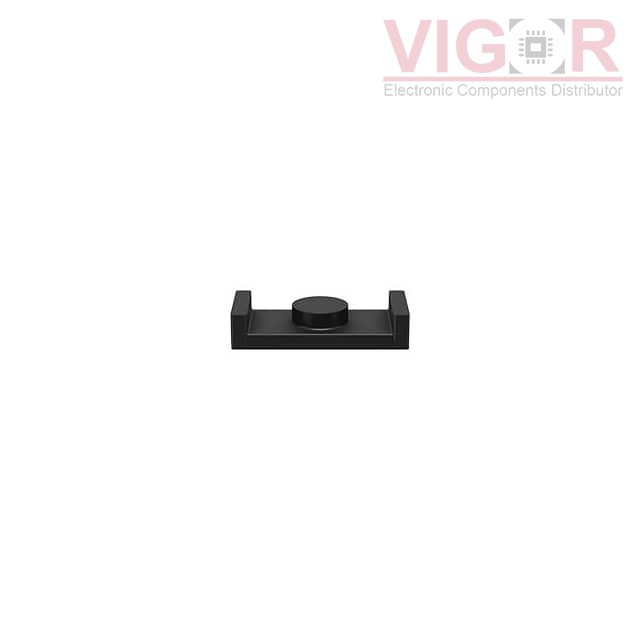

Image is for reference,
please contact us to get the real picture

Part No :

B65513J0100A087

Manufacturer
TDK EPCOS
Description
FERRITE CORE
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
B65513J0100A087 PDF
Availability
0 pieces
Unit Price
$0.61765

Current price of B65513J0100A087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65513J0100A087 Specifications
Type Description
Series:B65513
Package:Box
Part Status:Active
Core Type:ER
Supplier Device Package:ER 14.5 x 6
Material:N87
Diameter:-
Inductance Factor (Al):100 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):-
Initial Permeability (µi):2200
Core Factor (ΣI/A) mm-1:1.08
Effective Length (le) mm:19
Effective Area (Ae) mm²:17.6
Minimum Core Cross Section (Amin) mm²:17.3
Effective Magnetic Volume (Ve) mm³:334
Finish:Uncoated
Height:2.95mm
Length:14.50mm
Width:6.70mm
