B65803P0000R049

B65803P0000R049

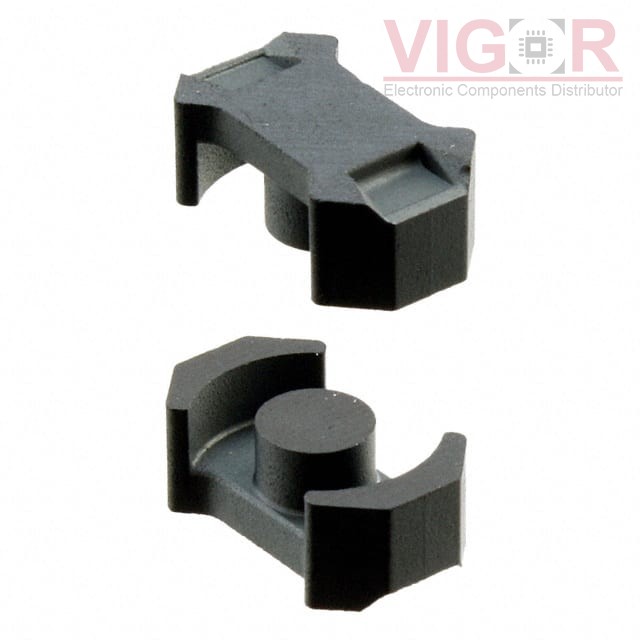

Image is for reference,
please contact us to get the real picture

Part No :

B65803P0000R049

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 950NH N49 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B65803P0000R049 PDF
Availability
232 pieces
Unit Price
$1.87000

Current price of B65803P0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65803P0000R049 Specifications
Type Description
Series:B65803P
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 4 LP
Material:N49
Diameter:-
Inductance Factor (Al):950 nH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):900
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:1.2
Effective Length (le) mm:17.3
Effective Area (Ae) mm²:14.5
Minimum Core Cross Section (Amin) mm²:11.3
Effective Magnetic Volume (Ve) mm³:251
Finish:Uncoated
Height:3.90mm
Length:11.00mm
Width:4.60mm
