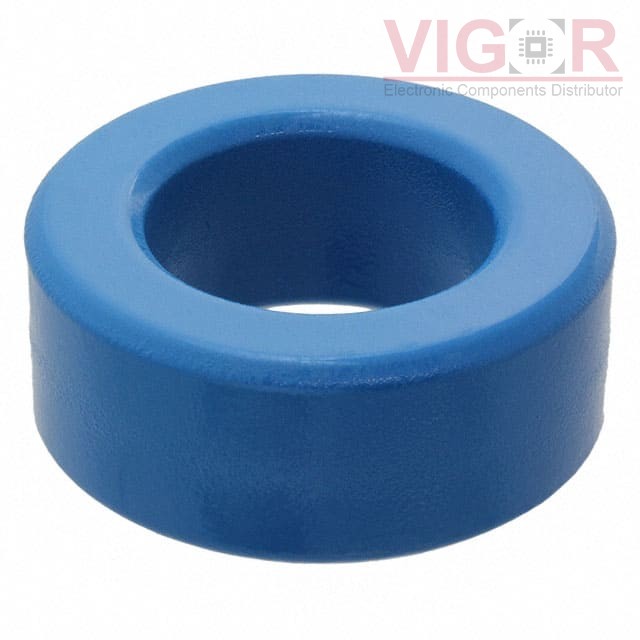

B64290L0699X087

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0699X087

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 5UH N87

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: B64290L0699X087 PDF

Availability: 317 pieces

Unit Price: ~~$14.50000~~

Current price of B64290L0699X087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0699X087 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N87
Diameter:	65.30mm
Inductance Factor (Al):	5 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.5
Effective Length (le) mm:	152.1
Effective Area (Ae) mm²:	305.9
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	46530
Finish:	Epoxy
Height:	26.60mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
