B65883A0000R092

B65883A0000R092

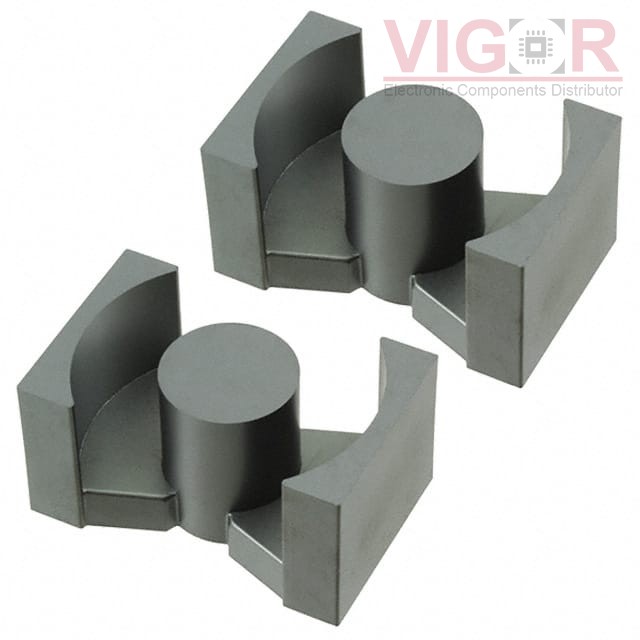

Image is for reference,
please contact us to get the real picture

Part No :

B65883A0000R092

Manufacturer
TDK EPCOS
Description
FERRITE CORE PQ 3.2UH N92 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B65883A0000R092 PDF
Availability
132 pieces
Unit Price
$8.85000

Current price of B65883A0000R092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65883A0000R092 Specifications
Type Description
Series:B65883A
Package:Box
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 40 x 40
Material:N92
Diameter:-
Inductance Factor (Al):3.2 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1250
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:0.49
Effective Length (le) mm:92.5
Effective Area (Ae) mm²:188.3
Minimum Core Cross Section (Amin) mm²:159.9
Effective Magnetic Volume (Ve) mm³:17430
Finish:Uncoated
Height:19.90mm
Length:40.50mm
Width:28.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B64290L0618X027

B64290L0618X027

FERRITE CORE TOROID
HOT B66363G1500X187

B66363G1500X187

FERRITE CORE

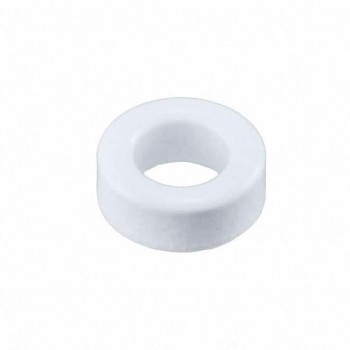

HOT TX10/6/4-3C90
