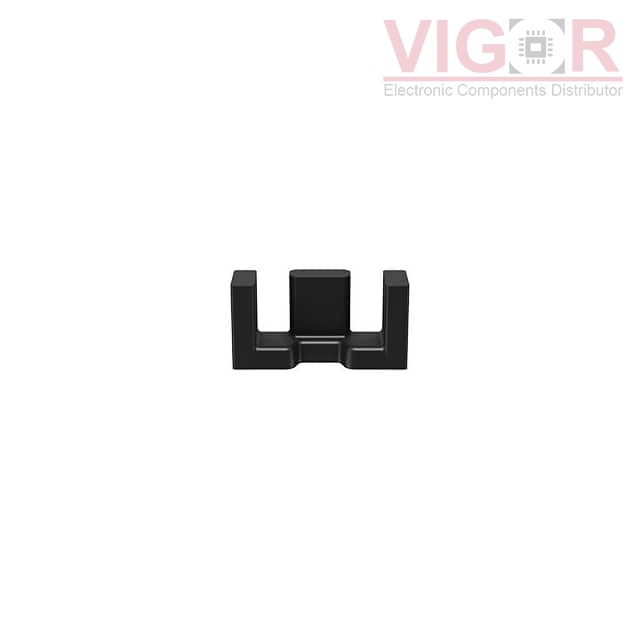

B66413U0160L197

Image is for reference,
please contact us to get the real picture

Part No :: B66413U0160L197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: B66413U0160L197 PDF

Availability: 0 pieces

Unit Price: ~~$0.30058~~

Current price of B66413U0160L197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66413U0160L197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EFD
Supplier Device Package:	EFD 15 x 8 x 5
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	2.27
Effective Length (le) mm:	34
Effective Area (Ae) mm²:	15
Minimum Core Cross Section (Amin) mm²:	12.2
Effective Magnetic Volume (Ve) mm³:	510
Finish:	Uncoated
Height:	7.50mm
Length:	15.00mm
Width:	4.65mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

B65813J0000R049

FERRITE CORE RM 2.9UH N49 2PCS

HOT

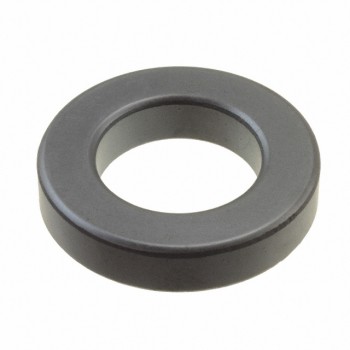

5980001001

80 TOROID

HOT

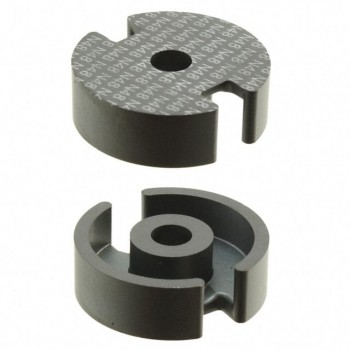

B65661D0000R041
