B65803A0016A001

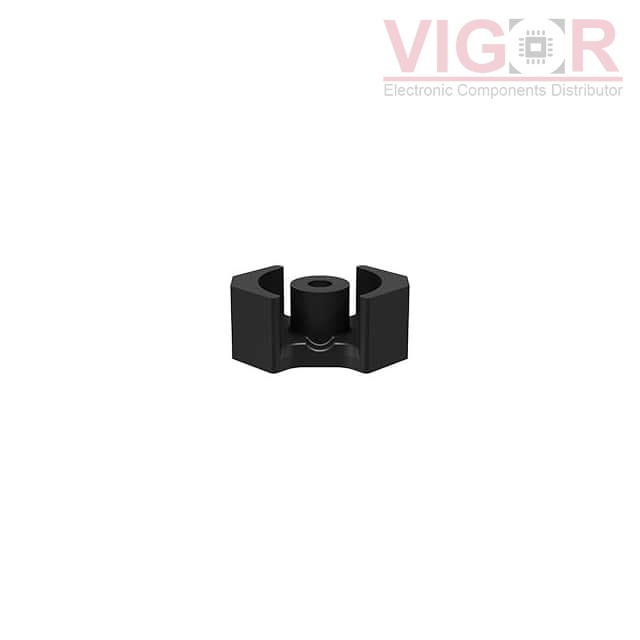

Image is for reference,
please contact us to get the real picture

Part No :: B65803A0016A001

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 16NH K1 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: B65803A0016A001 PDF

Availability: 0 pieces

Unit Price: ~~$2.11350~~

Current price of B65803A0016A001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65803A0016A001 Specifications

Type	Description
Series:	B65803
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 4
Material:	K1
Diameter:	-
Inductance Factor (Al):	16 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	24.2
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	1.9
Effective Length (le) mm:	21
Effective Area (Ae) mm²:	11
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	231
Finish:	Uncoated
Height:	5.25mm
Length:	11.00mm
Width:	4.60mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

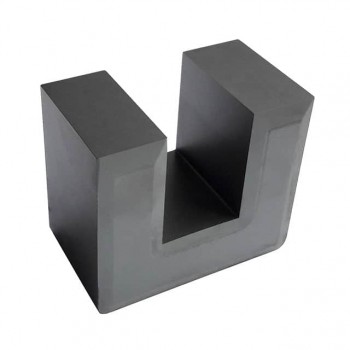

U126/91/20-3C94

FERRITE CORE

HOT

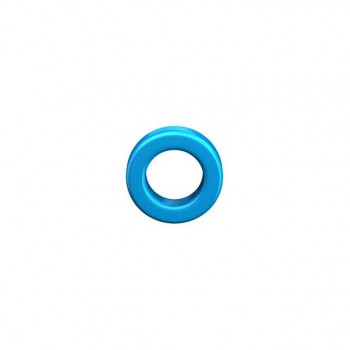

B64290L0658X035

FERRITE CORE TOROID 2.65UH T35

HOT

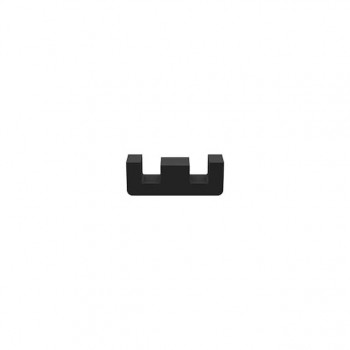

B66393G0000X187
