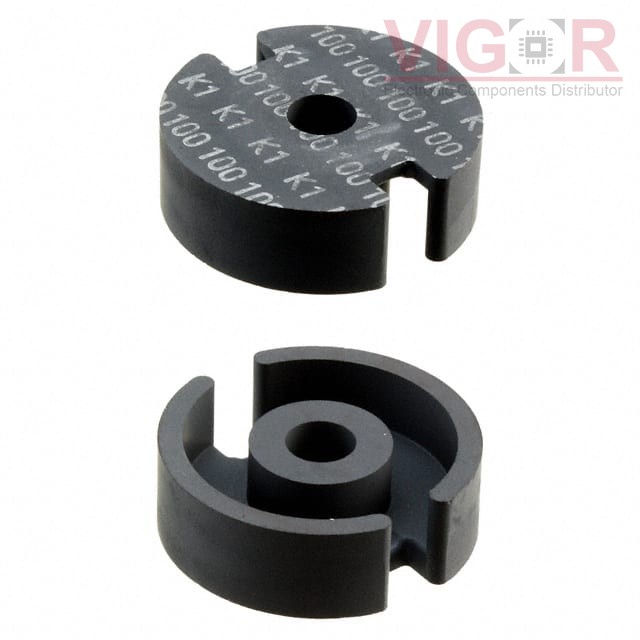

B65671T0100A001

B65671T0100A001

Image is for reference,
please contact us to get the real picture

Part No :

B65671T0100A001

Manufacturer
TDK EPCOS
Description
FERRITE CORE P 100NH K1 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
B65671T0100A001 PDF
Availability
240 pieces
Unit Price
$14.24000

Current price of B65671T0100A001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65671T0100A001 Specifications
Type Description
Series:B65671
Package:Box
Part Status:Active
Core Type:P (Pot Core)
Supplier Device Package:P 26 x 16
Material:K1
Diameter:26.00mm
Inductance Factor (Al):100 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):32
Initial Permeability (µi):80
Core Factor (ΣI/A) mm-1:0.4
Effective Length (le) mm:37.2
Effective Area (Ae) mm²:93
Minimum Core Cross Section (Amin) mm²:76.5
Effective Magnetic Volume (Ve) mm³:3460
Finish:Uncoated
Height:8.15mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B65881A0000R049

B65881A0000R049

FERRITE CORE PQ 3.3UH N49 2PCS
HOT B65803J0000R048

B65803J0000R048

FERRITE CORE

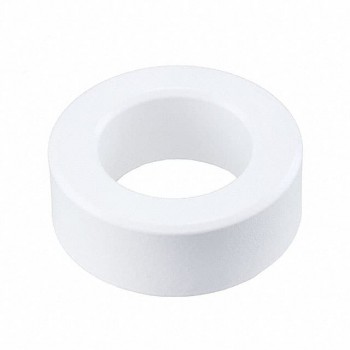

HOT TX36/23/15-3E27
