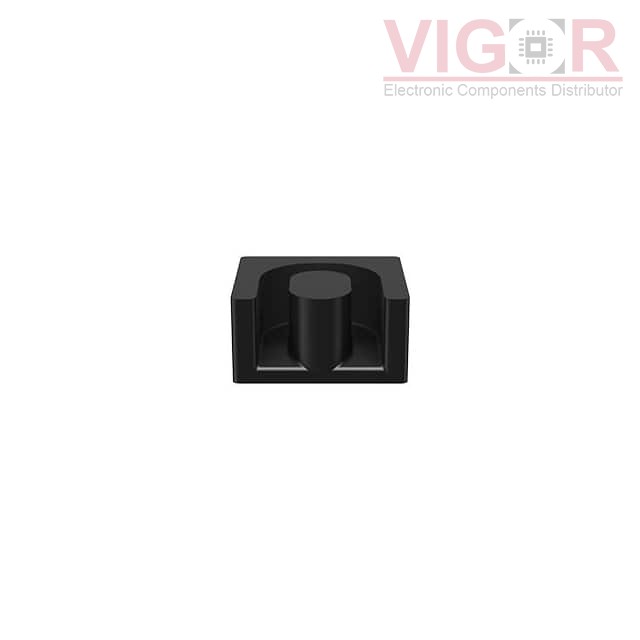

B65857C0000R045

B65857C0000R045

Image is for reference,
please contact us to get the real picture

Part No :

B65857C0000R045

Manufacturer
TDK EPCOS
Description
FERRITE CORE EPX 2.4UH N45 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
B65857C0000R045 PDF
Availability
0 pieces
Unit Price
$0.45925

Current price of B65857C0000R045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65857C0000R045 Specifications
Type Description
Series:B65857C
Package:Box
Part Status:Active
Core Type:EPX
Supplier Device Package:EPX 9 x 9
Material:N45
Diameter:-
Inductance Factor (Al):2.4 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):2070
Initial Permeability (µi):3800
Core Factor (ΣI/A) mm-1:1.09
Effective Length (le) mm:19
Effective Area (Ae) mm²:17.5
Minimum Core Cross Section (Amin) mm²:13.9
Effective Magnetic Volume (Ve) mm³:333
Finish:Uncoated
Height:4.75mm
Length:9.40mm
Width:9.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B66367G1500X187

B66367G1500X187

FERRITE CORE
HOT HF60T18X10X10

HF60T18X10X10

TOROIDAL CORE FOR EMI/RFI FILTER

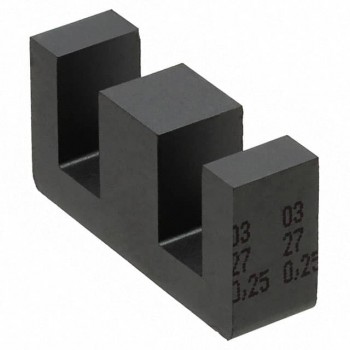

HOT B66317G0250X127
