PC95PQ20/16Z-12

PC95PQ20/16Z-12

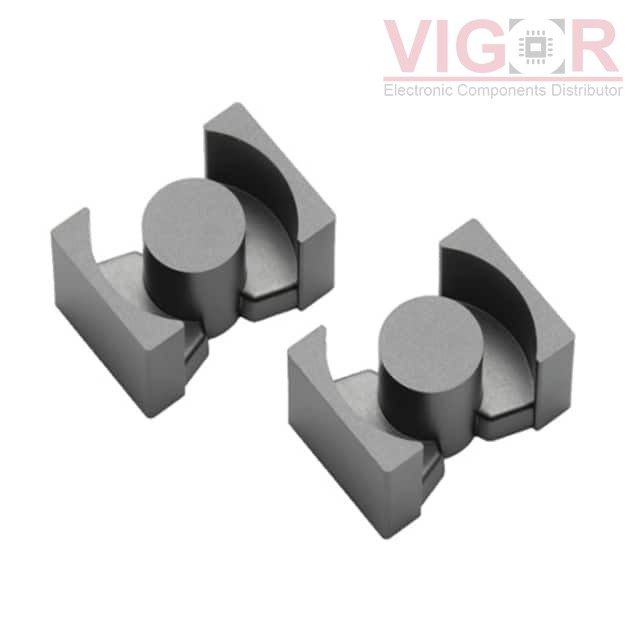

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQ20/16Z-12

Manufacturer
TDK Corporation
Description
FERRITE CORE PQ 4.48UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
PC95PQ20/16Z-12 PDF
Availability
35 pieces
Unit Price
$7.99000

Current price of PC95PQ20/16Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQ20/16Z-12 Specifications
Type Description
Series:PQ
Package:Tray
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 20 x 16
Material:PC95
Diameter:-
Inductance Factor (Al):4.48 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.61
Effective Length (le) mm:37.4
Effective Area (Ae) mm²:62
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:2310
Finish:Uncoated
Height:16.20mm
Length:20.50mm
Width:14.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TX36/23/15-4C65

TX36/23/15-4C65

FERRITE CORES ROUND
HOT B66317G0100X127

B66317G0100X127

FERRITE CORE E N27 1PC

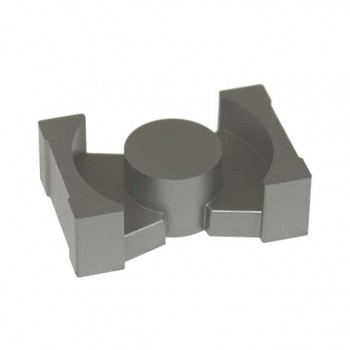

HOT PQ32/35-3C97
