PQ20/16-3F36

PQ20/16-3F36

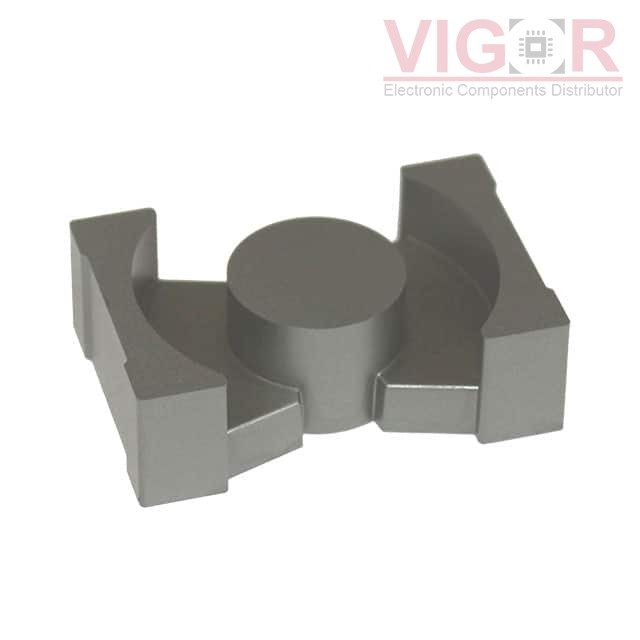

Image is for reference,
please contact us to get the real picture

Part No :

PQ20/16-3F36

Manufacturer
FERROXCUBE
Description
FERRITE CORE 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
PQ20/16-3F36 PDF
Availability
622 pieces
Unit Price
$1.27000

Current price of PQ20/16-3F36 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ20/16-3F36 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 20 x 16
Material:3F36
Diameter:-
Inductance Factor (Al):-
Tolerance:-
Gap:-
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:-
Effective Length (le) mm:-
Effective Area (Ae) mm²:-
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:-
Finish:Uncoated
Height:16.20mm
Length:21.30mm
Width:14.00mm
