B65859A0000R045

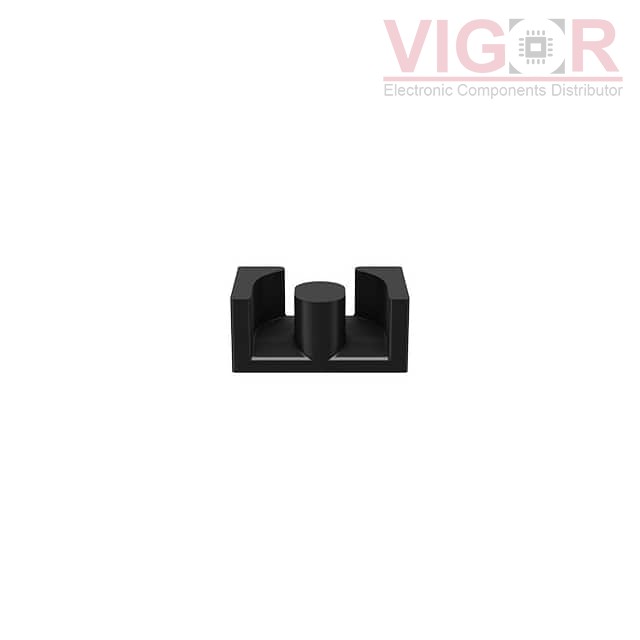

Image is for reference,
please contact us to get the real picture

Part No :: B65859A0000R045

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: B65859A0000R045 PDF

Availability: 0 pieces

Unit Price: ~~$0.57682~~

Current price of B65859A0000R045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65859A0000R045 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EPX
Supplier Device Package:	EPX 10
Material:	N45
Diameter:	-
Inductance Factor (Al):	1.9 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	2060
Initial Permeability (µi):	3800
Core Factor (ΣI/A) mm^-1:	1.37
Effective Length (le) mm:	21.7
Effective Area (Ae) mm²:	15.9
Minimum Core Cross Section (Amin) mm²:	13.2
Effective Magnetic Volume (Ve) mm³:	345
Finish:	Uncoated
Height:	5.20mm
Length:	11.80mm
Width:	7.85mm
