B65855A0000R092

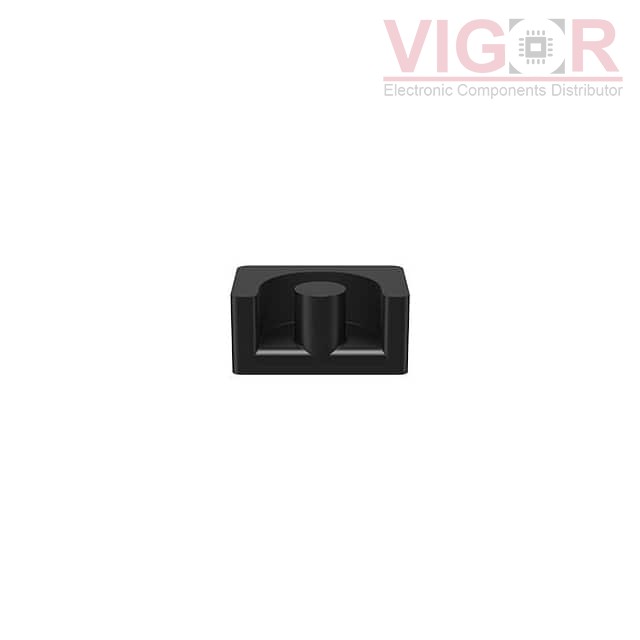

Image is for reference,
please contact us to get the real picture

Part No :: B65855A0000R092

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: B65855A0000R092 PDF

Availability: 0 pieces

Unit Price: ~~$0.40472~~

Current price of B65855A0000R092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65855A0000R092 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EP
Supplier Device Package:	EP 5
Material:	N92
Diameter:	-
Inductance Factor (Al):	350 nH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	880
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	3.149
Effective Length (le) mm:	9.73
Effective Area (Ae) mm²:	3.09
Minimum Core Cross Section (Amin) mm²:	2.3
Effective Magnetic Volume (Ve) mm³:	30
Finish:	Uncoated
Height:	2.85mm
Length:	6.15mm
Width:	3.90mm
