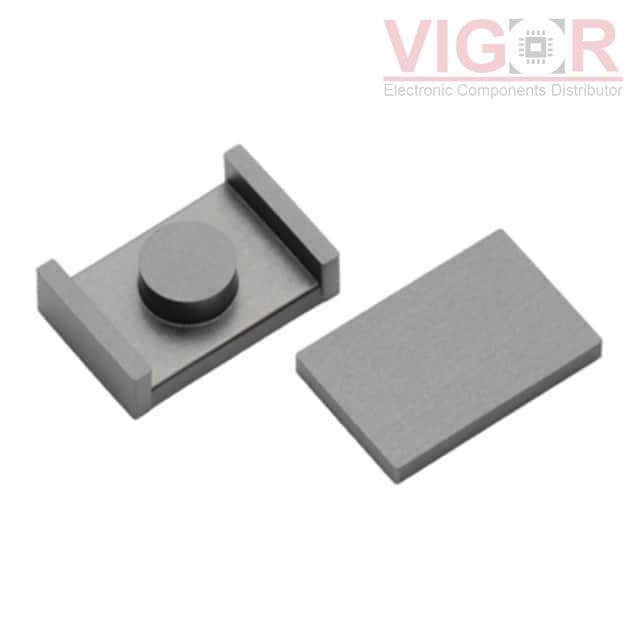

PC95EIR18/5/12-Z

PC95EIR18/5/12-Z

Image is for reference,
please contact us to get the real picture

Part No :

PC95EIR18/5/12-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EIR 3.69UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
PC95EIR18/5/12-Z PDF
Availability
201 pieces
Unit Price
$1.65000

Current price of PC95EIR18/5/12-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95EIR18/5/12-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:HER, PLT
Supplier Device Package:EI 18 x 5 x 12
Material:PC95
Diameter:-
Inductance Factor (Al):3.69 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.6
Effective Length (le) mm:32.8
Effective Area (Ae) mm²:19.7
Minimum Core Cross Section (Amin) mm²:28.3
Effective Magnetic Volume (Ve) mm³:645
Finish:Uncoated
Height:5.00mm
Length:18.15mm
Width:12.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B64290L0632X027

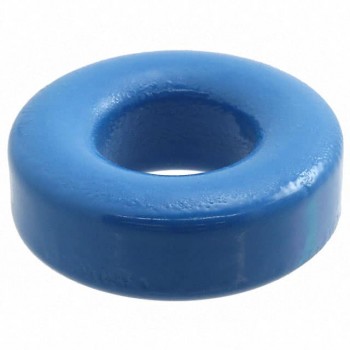

B64290L0632X027

FERRITE CORE TOROID 1.94UH N27
HOT PQ32/20-3C95

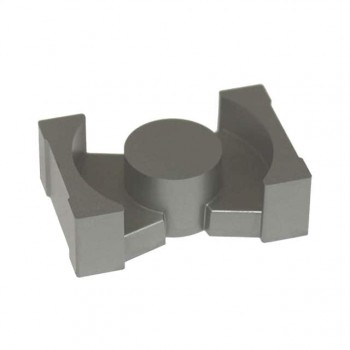

PQ32/20-3C95
