PC47EPC25B-Z

PC47EPC25B-Z

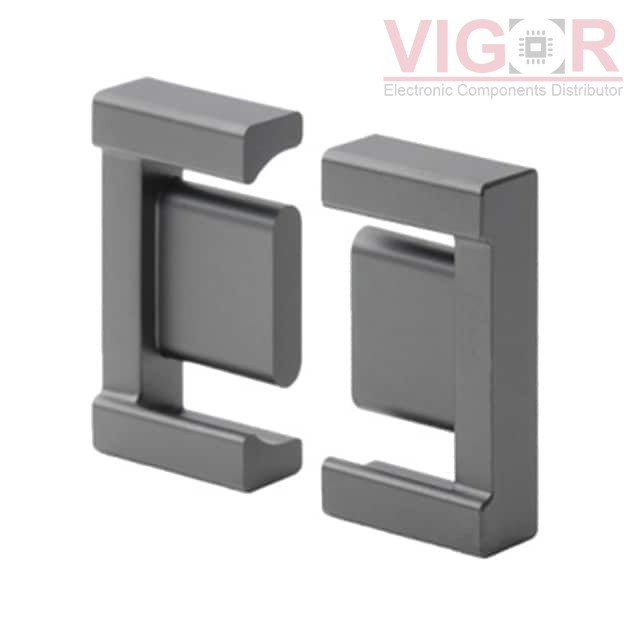

Image is for reference,
please contact us to get the real picture

Part No :

PC47EPC25B-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EPC 1.39UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PC47EPC25B-Z PDF
Availability
74 pieces
Unit Price
$2.80000

Current price of PC47EPC25B-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EPC25B-Z Specifications
Type Description
Series:EPC
Package:Tray
Part Status:Active
Core Type:EPC
Supplier Device Package:EPC 25
Material:PC47
Diameter:-
Inductance Factor (Al):1.56 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.39
Effective Length (le) mm:46.2
Effective Area (Ae) mm²:33.3
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:1540
Finish:Uncoated
Height:11.43mm
Length:25.10mm
Width:6.50mm
