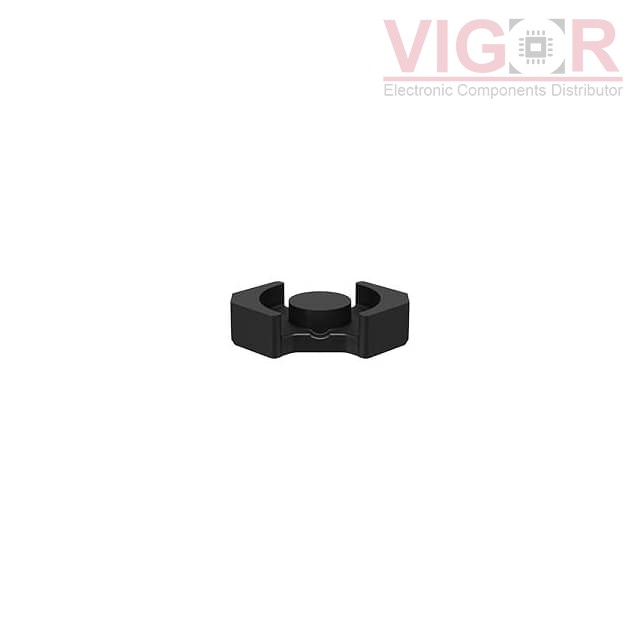

B65807P0000R049

B65807P0000R049

Image is for reference,
please contact us to get the real picture

Part No :

B65807P0000R049

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 2.2UH N49 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
B65807P0000R049 PDF
Availability
0 pieces
Unit Price
$1.21456

Current price of B65807P0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65807P0000R049 Specifications
Type Description
Series:B65807P
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 6 LP
Material:N49
Diameter:-
Inductance Factor (Al):2.2 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1020
Initial Permeability (µi):1500
Core Factor (ΣI/A) mm-1:0.58
Effective Length (le) mm:21.8
Effective Area (Ae) mm²:37.5
Minimum Core Cross Section (Amin) mm²:31.2
Effective Magnetic Volume (Ve) mm³:820
Finish:Uncoated
Height:4.50mm
Length:17.90mm
Width:8.20mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

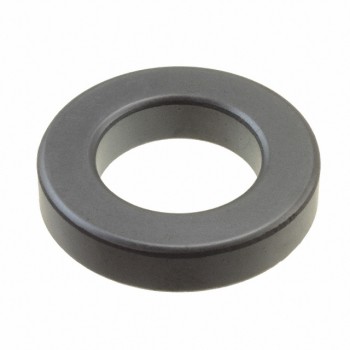

HOT 5952020801

5952020801

52 TOROID

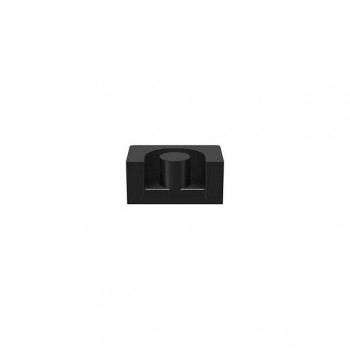

HOT B65843A0100A038

B65843A0100A038

FERRITE CORE EP 100NH T38 2PCS

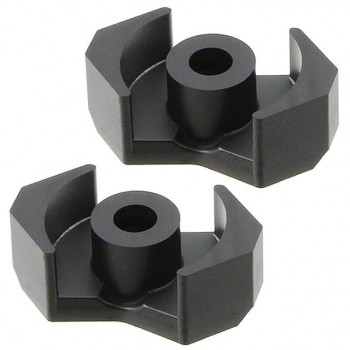

HOT B65807N0400A048
