B66432G0000X195

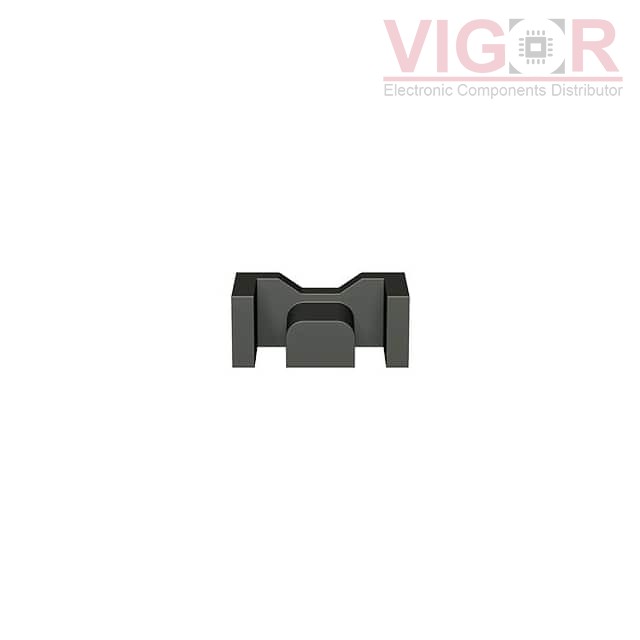

Image is for reference,
please contact us to get the real picture

Part No :: B66432G0000X195

Manufacturer: TDK EPCOS

Description: FERRITE CORES

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: B66432G0000X195 PDF

Availability: 0 pieces

Unit Price: ~~$0.79002~~

Current price of B66432G0000X195 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66432G0000X195 Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)
Part Status:	Active
Core Type:	EV
Supplier Device Package:	EV 30/16/13
Material:	N95
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	2104
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.76
Effective Length (le) mm:	74.8
Effective Area (Ae) mm²:	99
Minimum Core Cross Section (Amin) mm²:	95
Effective Magnetic Volume (Ve) mm³:	7410
Finish:	Uncoated
Height:	16.40mm
Length:	29.70mm
Width:	12.50mm

Please confirm the specifications of the products when ordering.
