PC95EL15.5X5.8-Z

PC95EL15.5X5.8-Z

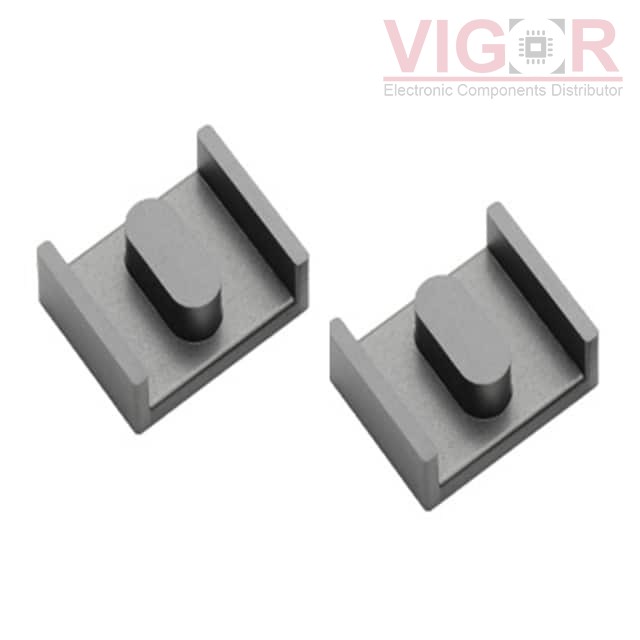

Image is for reference,
please contact us to get the real picture

Part No :

PC95EL15.5X5.8-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EL 3.68UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
PC95EL15.5X5.8-Z PDF
Availability
0 pieces
Unit Price
$1.54000

Current price of PC95EL15.5X5.8-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95EL15.5X5.8-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:EL
Supplier Device Package:EI 15.5 x 5.8
Material:PC95
Diameter:-
Inductance Factor (Al):3.68 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.6
Effective Length (le) mm:32.9
Effective Area (Ae) mm²:19.6
Minimum Core Cross Section (Amin) mm²:31.9
Effective Magnetic Volume (Ve) mm³:646
Finish:Uncoated
Height:2.92mm
Length:15.50mm
Width:12.40mm
