B65883A0000R097

B65883A0000R097

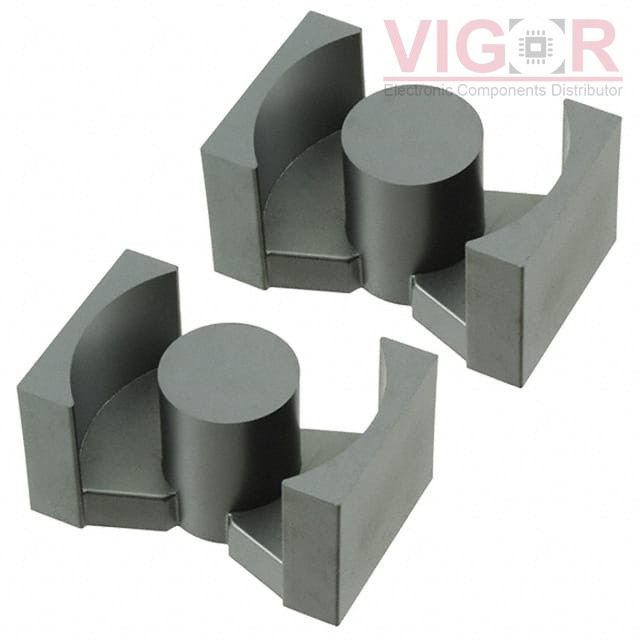

Image is for reference,
please contact us to get the real picture

Part No :

B65883A0000R097

Manufacturer
TDK EPCOS
Description
FERRITE CORE PQ 4.5UH N97 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
B65883A0000R097 PDF
Availability
135 pieces
Unit Price
$8.63000

Current price of B65883A0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65883A0000R097 Specifications
Type Description
Series:B65883A
Package:Box
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 40 x 40
Material:N97
Diameter:-
Inductance Factor (Al):4.5 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1755
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:0.49
Effective Length (le) mm:92.5
Effective Area (Ae) mm²:188.3
Minimum Core Cross Section (Amin) mm²:159.9
Effective Magnetic Volume (Ve) mm³:17430
Finish:Uncoated
Height:19.90mm
Length:40.50mm
Width:28.00mm
