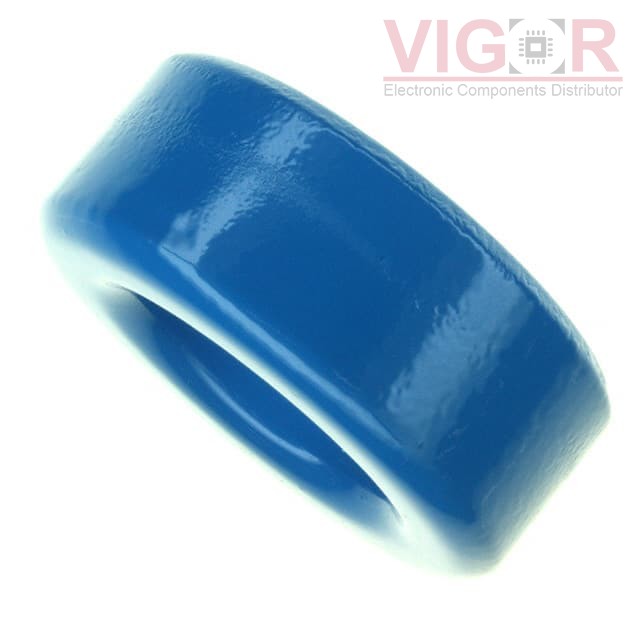

B64290L0659X830

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0659X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 7UH N30

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: B64290L0659X830 PDF

Availability: 94 pieces

Unit Price: ~~$5.60000~~

Current price of B64290L0659X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0659X830 Specifications

Type	Description
Series:	B64290
Package:	Tray
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	41.80mm
Inductance Factor (Al):	7 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.77
Effective Length (le) mm:	96.29
Effective Area (Ae) mm²:	125.3
Minimum Core Cross Section (Amin) mm²:	125.3
Effective Magnetic Volume (Ve) mm³:	12070
Finish:	Epoxy
Height:	17.20mm
Length:	-
Width:	-
