PC47EER25.5-Z

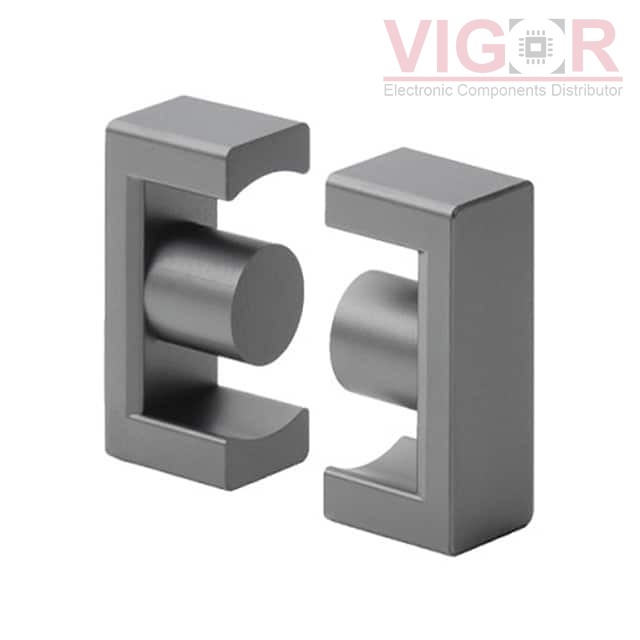

Image is for reference,
please contact us to get the real picture

Part No :: PC47EER25.5-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE EER 1.92UH 2PC SET

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: PC47EER25.5-Z PDF

Availability: 303 pieces

Unit Price: ~~$0.93000~~

Current price of PC47EER25.5-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EER25.5-Z Specifications

Type	Description
Series:	E
Package:	Tray
Part Status:	Active
Core Type:	EER
Supplier Device Package:	EER 25.5
Material:	PC47
Diameter:	-
Inductance Factor (Al):	1.92 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	1.08
Effective Length (le) mm:	48.2
Effective Area (Ae) mm²:	44.8
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	2160
Finish:	Uncoated
Height:	9.30mm
Length:	25.50mm
Width:	7.50mm

Please confirm the specifications of the products when ordering.
