B65541T0315A048

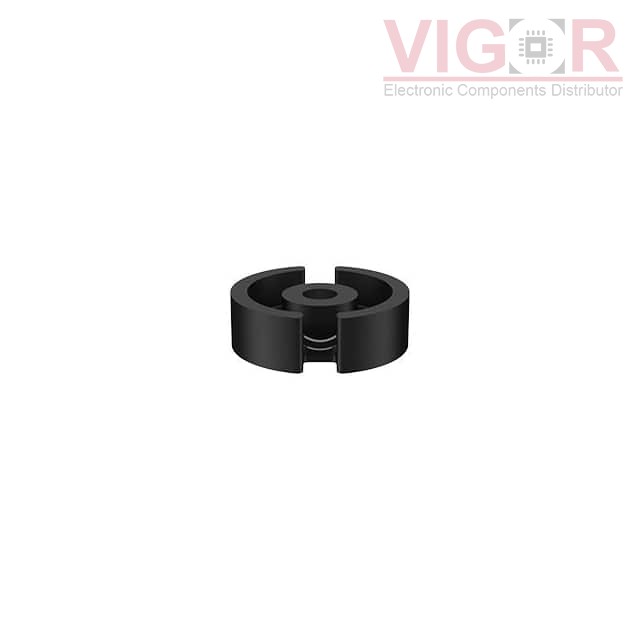

Image is for reference,
please contact us to get the real picture

Part No :: B65541T0315A048

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 315NH N48 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B65541T0315A048 PDF

Availability: 1211 pieces

Unit Price: ~~$2.61000~~

Current price of B65541T0315A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65541T0315A048 Specifications

Type	Description
Series:	B65541
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 14 x 8
Material:	N48
Diameter:	14.30mm
Inductance Factor (Al):	315 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	201
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.8
Effective Length (le) mm:	20
Effective Area (Ae) mm²:	25
Minimum Core Cross Section (Amin) mm²:	20
Effective Magnetic Volume (Ve) mm³:	500
Finish:	Uncoated
Height:	4.25mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
